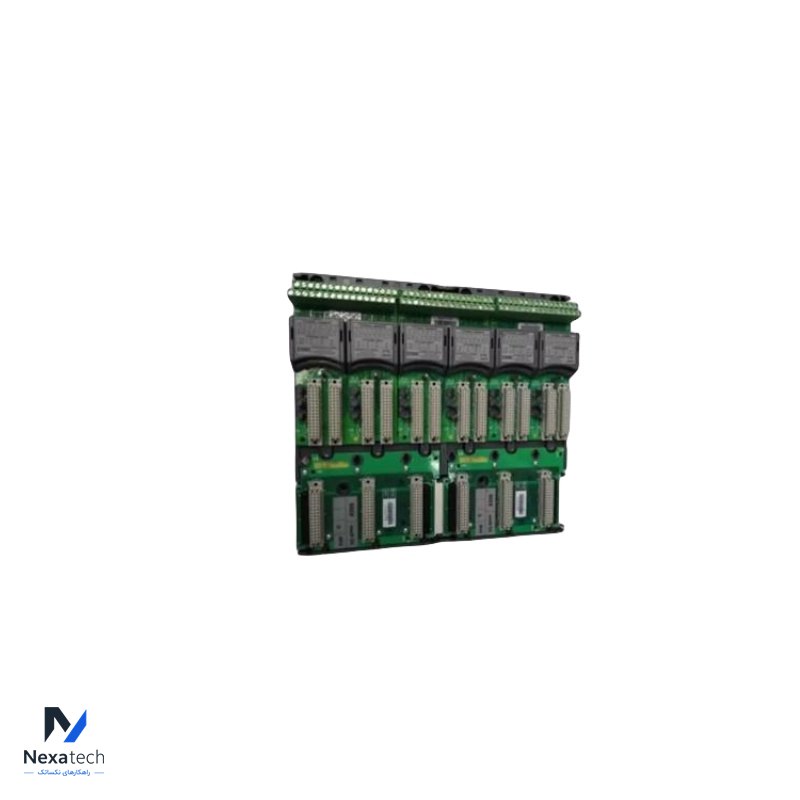

ICS TRIPLEX T8850C Trusted 40 Channel 24 VDC Digital Input Module

The ICS Triplex T8850C Trusted 40 Channel 24 VDC Digital Input Module is a part of the Trusted® range of safety-critical systems designed for high-reliability applications. This module is used for monitoring 24V DC digital signals from field devices and is built with fault tolerance and high availability in mind, making it ideal for use in industrial automation and control systems.



Features:
Fault-Tolerant Design: The T8850C module features a triplicated architecture, which ensures that failures within the module do not impact system operation. This is vital for safety-critical environments where continuous operation is required.
40 Channels: The module supports up to 40 digital inputs, providing a high channel density for monitoring a large number of field signals in a compact form factor.
High-Speed Processing: The module is designed to detect input changes quickly, with an update time of less than 10 milliseconds, ensuring that the system responds promptly to field signals.
Self-Diagnostics: Continuous self-diagnosis ensures that the module can detect and report faults within the system, contributing to high system reliability.
Event Recording: Capable of recording events with 1ms resolution, allowing for precise logging of input signal changes and enabling accurate post-event analysis.
Input Isolation: Isolation between input channels ensures that faults or transients on one channel do not affect other inputs, contributing to overall system robustness.
Applications:
Process Control Systems: Used in industries like oil and gas, chemical, and power generation, where monitoring of digital inputs is critical for operational safety and efficiency.
Safety-Critical Systems: Ideal for use in applications where safety integrity and system availability are paramount, such as Emergency Shutdown (ESD) systems, Fire and Gas (F&G) systems, and other critical control systems.
High-Density Monitoring: The 40-channel capacity allows for dense signal monitoring, making it well-suited for large installations with multiple field devices.
This T8850C Digital Input Module plays a vital role in ICS Triplex Trusted® systems, ensuring reliable and continuous monitoring of digital signals in demanding industrial environments.
