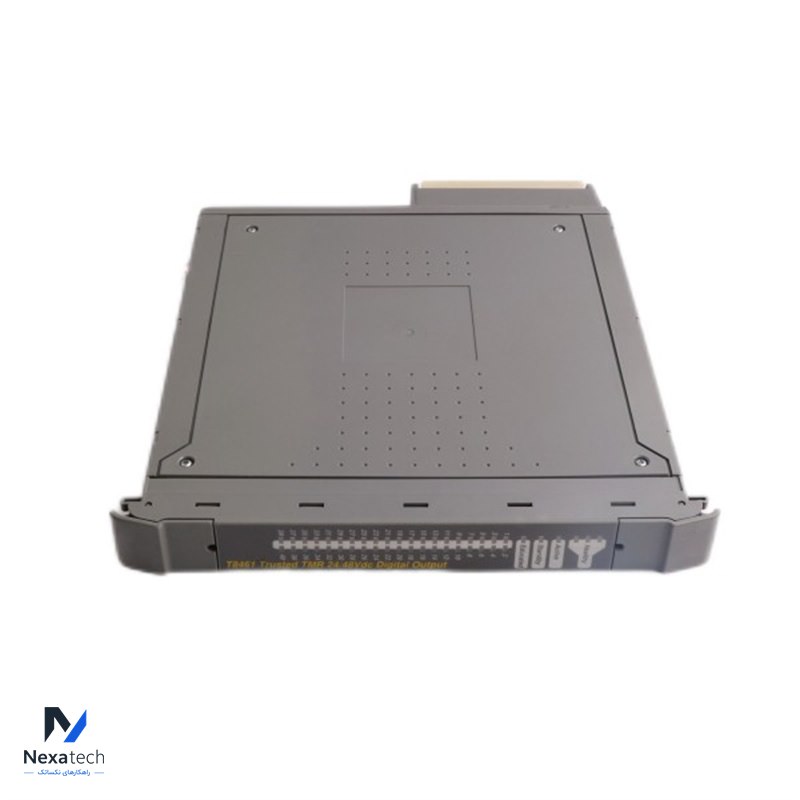

ICS TRIPLEX T8461 TMR 24/48 Vdc Digital Output Module

Brand Name:

Model Number:

T8461

Alternate Part Number

T8461

Condition:

100% Original

Dimensions

3x30.3x26.5cm

Weight

0.5kg

Description

TMR 24/48 Vdc Digital Output Module

Warranty:

12 Months

Specification

Details

Manufacturer

ICS Triplex

Model

T8461

System Supply Voltage Range

20 to 32 V DC

Circuit Type

Fault-tolerant, fully triplicated with optional line monitoring

Number of Outputs

40 channels

Independent Power Groups

5 power groups (each with 8 outputs)

Operational Output/Field Voltage Range

18 to 60 V DC

Output Voltage Measurement Range

0 to 60 V DC

Maximum Withstanding Voltage

-1 to 60 V DC

Output Current Rating (Continuous)

0.75 A per channel, 6 A per power group

Minimum On-State Load Current

25 mA

Output Off-State Resistance

33 kΩ (effective leakage)

Maximum Capacitance (Pre-Release 3.5)

30-55 µF

Maximum Capacitance (Release 3.5)

At least 3500 µF at 0.75 A

Flashing/Pulsing Current Loads

Release 3.5 recommended

Output On-State Resistance

0.6 Ω

Output Short Circuit Protection

Electronic (latching)

Channel-to-Channel Crosstalk

> -40 dB

Power Consumption (Field Supply @ 24V)

18 W

Power Consumption (System Supply @ 24V)

22 W

Field Common Isolation (Sustained Working)

±250 V DC

Field Common Isolation (Maximum Withstanding)

±2.5 kV DC

Output Turn-on/Off Delay

0.5 ms

Sample Update Time

0.5 ms

Sequence of Events (SOE) Resolution

1 ms

Time-stamp Accuracy

±0.5 ms

Self-Test Interval

2 minutes

Intrinsic Safety

External barrier required

Output Short Circuit Protection

Automatic

Operating Temperature

-5°C to 60°C (23°F to 140°F)

Non-operating Temperature

-25°C to 70°C (-13°F to 158°F)

Temperature Change Rate

0.5°C/min

Operating Humidity

5% to 95% RH (non-condensing)

Environmental Specifications

Refer to Document 552517

Dimensions (H x W x D)

266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12 in)

Weight

1.285 kg (2.8 lbs)

Shipping Weight

2 kg
