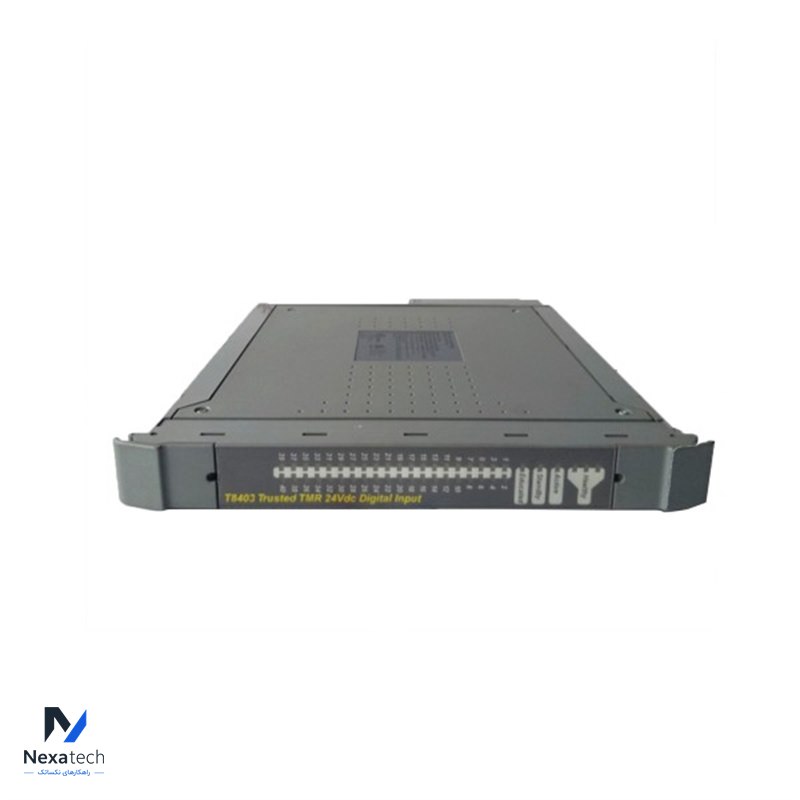

ICS TRIPLEX T8403 Trusted TMR 24 Vdc Digital Input Module

The ICS Triplex T8403 is a Trusted TMR (Triple Modular Redundant) 24Vdc Digital Input Module, designed for high-integrity, safety-critical applications in industrial automation systems. It is part of the Trusted TMR system, which ensures fault tolerance and high availability by using triple redundancy and advanced diagnostics. This module provides 40 isolated input channels, each with fault tolerance and the ability to handle real-time diagnostics.

Key Specifications:
Product Type: Trusted TMR 24Vdc Digital Input Module
Voltage Range: 24V DC (Nominal)
Number of Input Channels: 40 isolated digital inputs
Fault Tolerance: Triple Modular Redundancy (TMR)
Input Signal Isolation: Galvanically isolated per channel
Input Type: Digital (suitable for 24Vdc signals)
Safety Integrity Level (SIL): Rated for SIL3 applications (per IEC 61508)
Diagnostics: Built-in diagnostics for detecting faults in input circuitry and wiring
Module Redundancy: Compatible with TMR architecture, providing fault tolerance through triple redundancy
Operating Temperature: -5°C to +60°C
Non-operating Temperature: -25°C to +70°C
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: Standard Trusted module dimensions
Use Case: Critical control systems requiring high reliability, such as process industries, power generation, and oil and gas sectors

Features:
Triple Modular Redundancy: Ensures system fault tolerance by voting across three independent input channels, reducing the risk of single-point failures.
High Integrity and Safety: Certified for use in SIL3 applications, making it ideal for safety-critical environments.
Diagnostic Coverage: Continuous diagnostics help identify and isolate faults in the input circuitry, allowing timely maintenance and ensuring system availability.
The T8403 module is an essential component for systems that demand uninterrupted and safe operations, providing robust performance in harsh industrial conditions.
