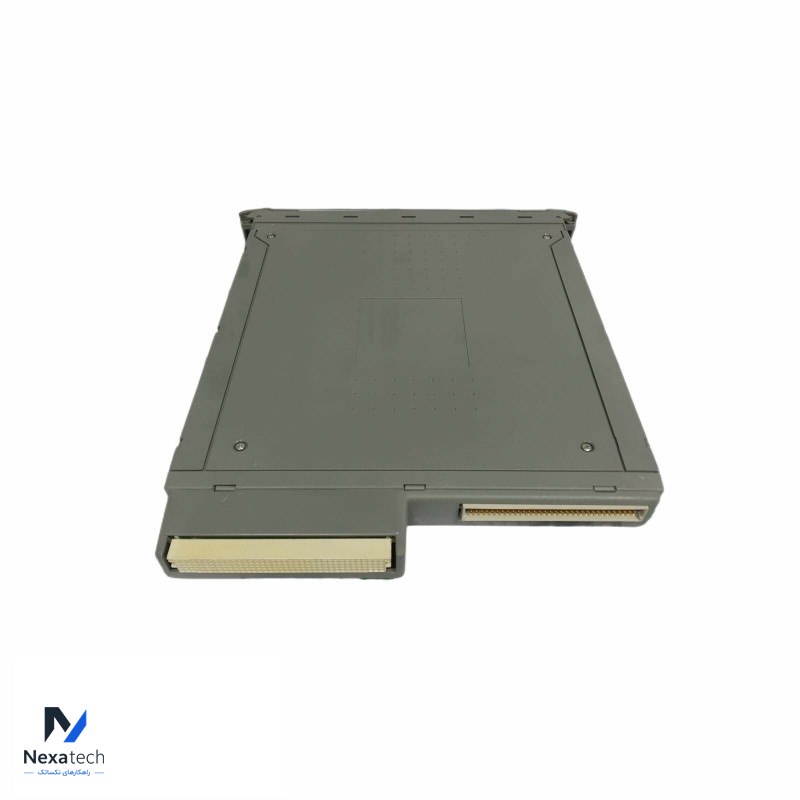

ICS TRIPLEX T8311 Trusted TMR Expander Interface

The ICS Triplex T8311 is a Trusted TMR Expander Interface designed to extend the Trusted Triple Modular Redundant (TMR) system architecture. This module serves as a critical component for the extension of input/output (I/O) functionality to expander chassis, providing enhanced scalability for the system.

Key Specifications:
Product Type: Trusted TMR Expander Interface
Voltage Range: 20 to 32V DC
Heat Dissipation: 40W
Compatible Chassis: T8311
Maximum Load: 40W
Module Clock Speed: 50MHz
Expander Bus Data Rate: 250Mbps
I/O Interface: Expander chassis backplane
Operating Temperature: -5°C to 60ºC (13°F to 140°F)
Non-operating Temperature: -25°C to 70°C (-25°F to 158°F)
Operating Humidity: 5 to 95% RH
Dimensions (L x W x H): 30.3 cm x 3.1 cm x 26.6 cm

Weight: 1.14 Kg

This module is essential for large-scale, high-reliability industrial control systems, allowing for modular system expansion while maintaining the integrity and redundancy provided by the TMR architecture.
