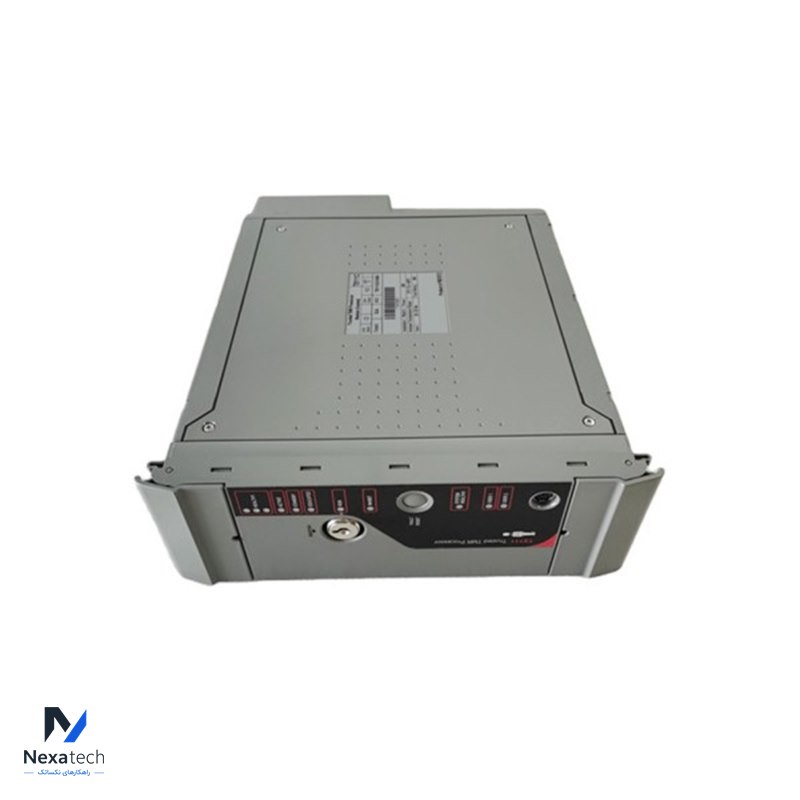

Name: ICS Triplex T8153C Trusted Communication Interface Adapter
Brand: ICS Triplex
SKU: T8153C
Availability: InStock

مشخصات فنی

Brand Name:	ICS Triplex
Model Number:	T8153C
Alternate Part Number	T8153C
Condition:	100% Original
Dimensions	13.5x10.7x2.7cm	Weight	0.4kg
Description	Trusted Communication Interface Adapter	Warranty:	12 Months

The Trusted Communication Interface Adapter T8153 is specifically designed for direct connection to the rear of a Trusted Communication Interface Module, housed in a Trusted Controller Chassis T8100. This assembly facilitates communication with remote systems by providing an interface connection. It connects to the Trusted Communication Interface Module via a 78+2-way Inverse DIN41612 M-type connector (SK1).

Key features include:

■Enables seamless external system communication with a Trusted System.

■Simple installation process, connecting directly to the rear of the Trusted Communication Interface.

■Offers two 10/100BaseT connections.

■Provides four RS422/485 connections.

■Includes two RS232 connections, with one offering full RS232 functionality.

The Ethernet ports on the Gateway Module do not function optimally with the T8153 Communications Interface Adapter. While most ports can be made to work by manually setting the arbitration to 100BaseT and full duplex, it is recommended to use the T8173 Gateway Adapter instead. The T8173 is more suitable for use with the Gateway Module and also provides connections for keyboard, video, and mouse ports.
