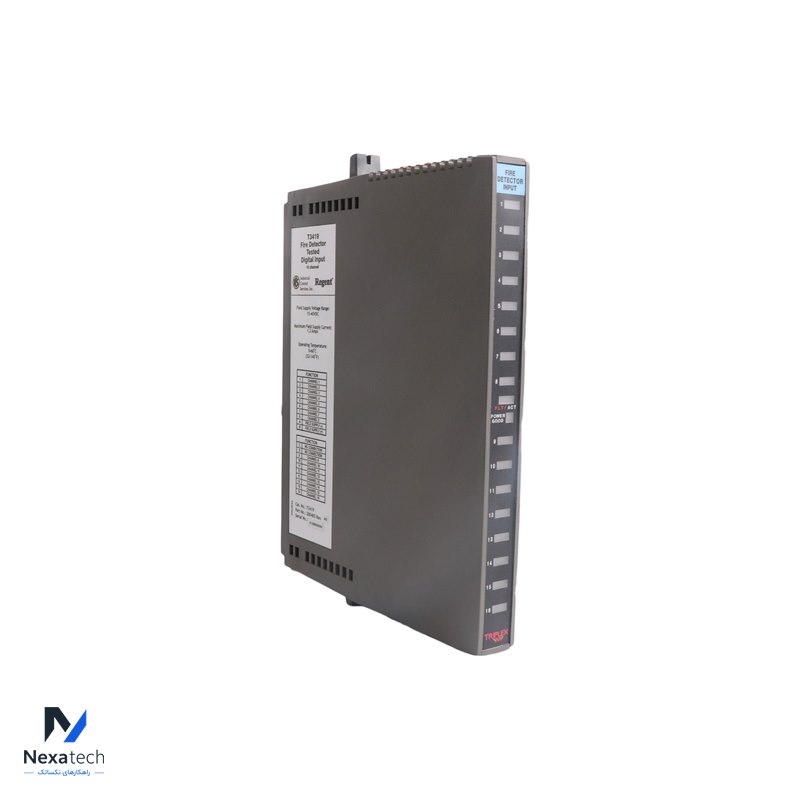

Name: ICS TRIPLEX T3419 Digital Input Module
Brand: ICS Triplex
SKU: T3419
Availability: InStock

Brand Name:	ICS TRIPLEX
Model Number:	T8800
Alternate Part Number	T8800
Condition:	100% Original
Dimensions	34x13x7cm	Weight	0.66kg
Description	Trusted 40 Channel 24V Digital Input Module	Warranty:	12 Months

The ICS Triplex T3419 Digital Input Module is part of the Trusted® TMR (Triple Modular Redundant) system by ICS Triplex, designed for use in safety-critical applications where high reliability and fault tolerance are essential. The module provides multiple digital input channels and uses TMR architecture to ensure continuous operation, even in the presence of hardware faults.

Specification	Details
Manufacturer	ICS Triplex
Model	T3419
Type	Digital Input Module
Number of Input Channels	40 channels
Input Voltage Range	18 to 32 V DC (Nominal 24 V DC)
Input Current (per Channel)	Approximately 4 mA at 24 V DC
Channel Isolation	Each channel is isolated to prevent interference or crosstalk
Fault Tolerance	Triple Modular Redundant (TMR) architecture, ensuring continuous operation with fault detection and recovery
On-State Voltage	Greater than 18 V DC
Off-State Voltage	Less than 5 V DC
On-State Current	4 mA (minimum)
Off-State Current	1 mA (maximum)
Channel Crosstalk	Negligible due to high channel isolation
Input Signal Delay	1 ms (typical)
Diagnostics	Comprehensive diagnostics, including detection of stuck-on and stuck-off inputs, and out-of-range conditions
Self-Test Interval	Periodic self-tests to verify system health
Input Protection	Overvoltage protection on input channels
Power Consumption	Low power consumption typical for high-density digital input modules
Hot-Swappable	Yes, the module can be replaced without shutting down the system
Power Supply	Through Trusted® system backplane
Operating Temperature Range	-5°C to 60°C (23°F to 140°F)
Storage Temperature Range	-25°C to 70°C (-13°F to 158°F)
Operating Humidity	5% to 95% RH (non-condensing)
Vibration and Shock	Compliant with industrial standards
Safety Certifications	SIL3 certified for use in safety-critical applications
Dimensions (H x W x D)	Standard Trusted® module form factor, fitting the ICS Triplex chassis
Weight	Approximately 1.5 kg
Shipping Weight	Approximately 2 kg

Additional Features:
TMR (Triple Modular Redundancy): Each input is processed by three independent systems, with majority voting to ensure reliable data processing and fault tolerance. Even if one subsystem fails, the module continues to function.
Line Monitoring: Optional line monitoring to detect open and short circuits in the field wiring, enhancing diagnostic capabilities and ensuring system reliability.
Event Logging: Capable of capturing and time-stamping events for sequence of events (SOE) analysis, providing detailed event data for troubleshooting and analysis.
Fast Input Response: The module supports high-speed input processing with typical delays of 1 ms, making it suitable for real-time control and monitoring applications.
Self-Testing and Diagnostics: The module performs continuous self-testing and diagnostics to ensure operational integrity and to provide early warning of potential faults.
Applications:
The ICS Triplex T3419 Digital Input Module is ideal for use in industries where safety, reliability, and fault tolerance are crucial, such as:

Oil & Gas: Emergency shutdown systems and fire/gas detection systems.
Power Generation: Turbine control and plant safety monitoring.
Chemical and Petrochemical: Process safety and critical control applications.
Industrial Automation: High-reliability safety systems in manufacturing.
This module is designed for high-reliability environments, ensuring that safety-critical systems operate without interruption, even in the event of a hardware failure.
