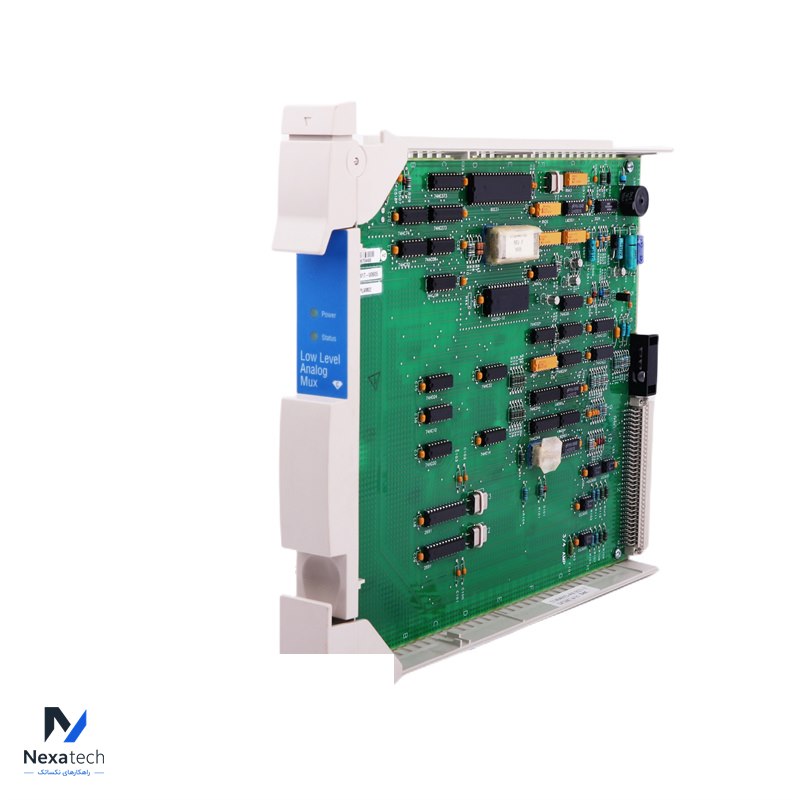

Name: HONEYWELL MC-PLAM02 51304362-150 Low-Level Analog Input Module
Brand: Honeywell
SKU: MC-PLAM02 51304362-150
Availability: InStock

مشخصات فنی

Specification
Brand Name	HONEYWELL	Input Channels: 32, galvanically isolated Common Mode Voltage (CMV): 250 V AC peak or ±250 V DC (DC to 60 Hz) Crosstalk: 120 dB (DC to 60 Hz) Input Impedance: Minimum 2 MΩ at 100 mV Maximum Normal Mode Continuous Input (No Damage): -1 V to 10 V Line Frequency Synchronization: Configurable to 50 or 60 Hz Hardware Accuracy: ±40 µV or ±160 mΩ at 23.5 °C ±2 °C Software Accuracy: ±0.1 °C typical, ±0.5 °C maximum at 23.5 °C ±2 °C Voltage Input Signal Range: 0 to 100 mV RTD Maximum Lead Resistance: 15 Ω



Model Number	MC-PLAM02
Alternate Part Number	51304362-150
Condition	100% Original
Dimensions	3x31.8x27.8cm
Description	Low-Level Analog Input Module
Weight	0.62 kg
Warranty	12 Months

Moore Automation understands the criticality of your requirement and works towards reducing the lead time as much as possible.
MC-PLAM02 51304362-150 Low-Level Analog Input Module is available in stock which ships the same day.
To avail our best deals for MC-PLAM02 51304362-150 Low-Level Analog Input Module, contact us and we will get back to you within 24 hours.

Frequently Asked Questions (FAQ):

1.What is the HONEYWELL MC-PLAM02 51304362-150?
The MC‑PLAM02 51304362‑150 is a low-level analog input multiplexer processor module manufactured by Honeywell.

2.What is the typical delivery time of MC-PLAM02 51304362-150?
For in-stock items, delivery is often 1-3 days after payment. Items with a specific lead time (which can be 3-4 weeks) are delivered accordingly.

3.What is the warranty period for MC-PLAM02 51304362-150?

A standard one-year warranty is typically offered for new and original items.

Application:
The HONEYWELL MC‑PLAM02 51304362‑150 Low-Level Analog Input Module is primarily used in industrial automation systems for acquiring and processing low-level analog signals, enabling precise monitoring and control. It is widely applied in industries such as petrochemical, chemical, power generation, water treatment, pharmaceuticals, and manufacturing.
