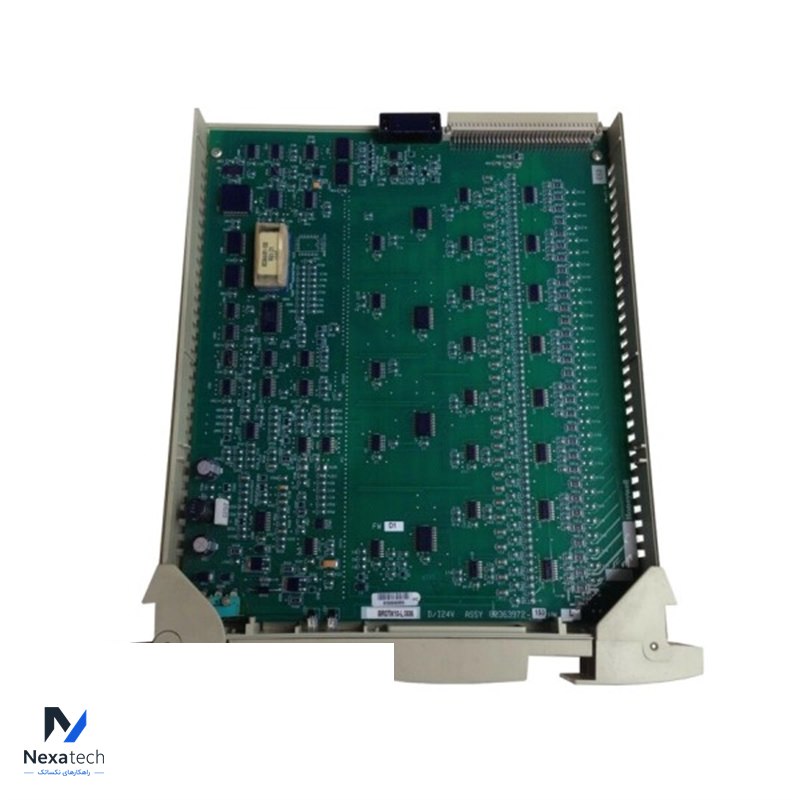

Honeywell MC-PDIY22 80363972-150 Digital Input 24 Vdc Processor
توضیحات محصول
مشخصات فنی
| Brand Name: | HOENYWELL | ||
| Model Number: | MC-PDIY22 | ||
| Alternate Part Number | 80363972-150 | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 7.6 cm | Weight | 0.2kg |
| Description | Digital Input 24 Vdc Processor | Warranty: | 12 Months |
| | | | |
The Honeywell MC-PDIY22 80363972-150 is a Digital Input module designed for use in industrial automation systems. It is specifically used in Honeywell's process control systems for handling digital input signals.
Key Features and Specifications:
Part Number: 80363972-150
Module Type: Digital Input Processor
Voltage: 24 V DC
Processor Type: Digital Input Processor
Key Features:
Input Channels: Typically supports a certain number of digital input channels, which are used for receiving discrete signals from field devices such as switches, relays, or sensors.
Voltage Range: Operates at 24 V DC, which is a common voltage level for digital input modules in industrial systems.
Isolation: Provides electrical isolation to protect the system from field device transients and noise, ensuring reliable operation.
Reliability: Designed for high reliability and durability in demanding industrial environments.
Specifications:
Input Channels: Number of channels varies by module configuration; typically includes multiple channels for discrete digital inputs.
Input Voltage: 24 V DC
Isolation: Electrical isolation to protect against interference and ensure reliable operation.
Input Impedance: Suitable for interfacing with digital devices and sensors.
Protection: Includes protection features to safeguard against over-voltage, short circuits, and other potential issues.
| Specification | MU-TDOY22 |
| Output Channels | 32 |
| Output Type | Open-collector (current sinking) |
| Output Type Transistors | NPN |
| Load Voltage Range | 15-30 V DC |
| - Per Point | 0.5 A (max) |
| - Per 2 Points | 1.0 A (max) |
| - Per 32 Points | 5 A (max) |
| Isolation | Galvanic Isolation (photo coupler) |
| - Voltage Isolation | 30 Vac, ±42.4 Vdc max |
| On-State Voltage | 0.5 V (max) at 0.5 A load current |
| Off-State Voltage | 30 V DC (max) |
| Off-State Leak Current | 0.5 µA (max) |
| Turn-On/Turn-Off Time | 200 msec (max) |
