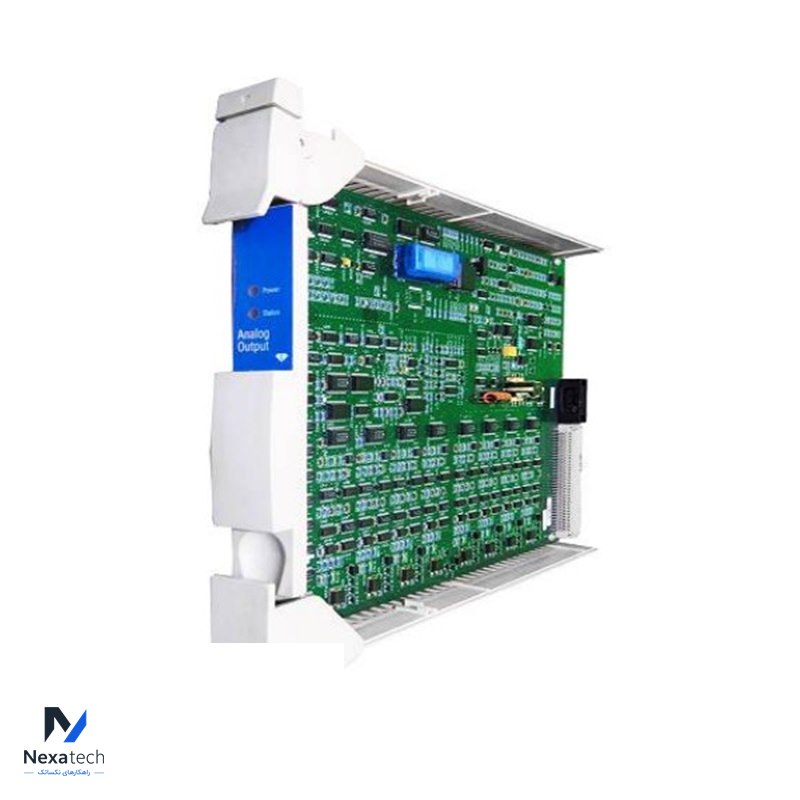

Honeywell MC-PAOX03 51309152-175 Analog Output 8-Point Processor/FTA
توضیحات محصول
مشخصات فنی
| Brand Name: | HOENYWELL | ||
| Model Number: | MC-PAOX03 | ||
| Alternate Part Number | 51309152-175 | ||
| Condition: | 100% Original | ||
| Dimensions | 12.7 cm x 5.1 cm x 20.3 cm | Weight | 0.7kg |
| Description | Analog Output 8-Point Processor/FTA | Warranty: | 12 Months |
| | | | |
The MC-PAOX03 is an Analog Output Processor designed for use in Honeywell's control systems. It provides high-level current outputs for controlling various actuators and devices in industrial automation systems.
Features:
Precise Analog Output: Provides accurate and stable current output for a range of applications.
High Reliability: Built to operate reliably in demanding industrial environments.
Flexible Configuration: Can be configured for different output ranges and loads.
Integration Capabilities: Designed to integrate seamlessly with Honeywell control systems.
Key Features:
Precise Analog Output: Accurate 4-20 mA output for a range of industrial applications.
High Stability and Accuracy: Low temperature drift and high-resolution output.
Fast Settling Time: Quick response to digital input changes.
Robust Design: Suitable for varying environmental conditions and capable of withstanding surges.
Applications:
Industrial Automation: Ideal for controlling actuators, valves, and other devices.
Process Control Systems: Suitable for use in systems requiring precise and stable analog outputs.
Measurement and Monitoring: Used in systems where accurate analog output is crucial.
| Parameter | Specification |
| Models | MU-TAOX02, TAOX12, TAOX52 |
| Output Type | 4-20 mA |
| Output Channels | 8 |
| Output Ripple | 100 mV peak-to-peak at power line frequency, across 250 Ω load |
| Output Temperature Stability | 0.02% Full Scale/°C |
| Resolution | ± 0.05% |
| Calibrated Accuracy | ± 0.35% (25°C) including linearity |
| Output Readback Checking Accuracy | ±4% |
| Humidity Range | 10 - 90% non-condensing |
| Directly Accessible Output Current Range | 0.1-21.4 mA |
| Maximum Current Output | 26 mA |
| Maximum Resistive Load | 750 Ω @ 22 mA |
| Output Settling Time | 4 ms (digital input code to 98% of final output value) |
| Surge Withstand Capability | ANSI/IEEE C37.90.1-1978 |
