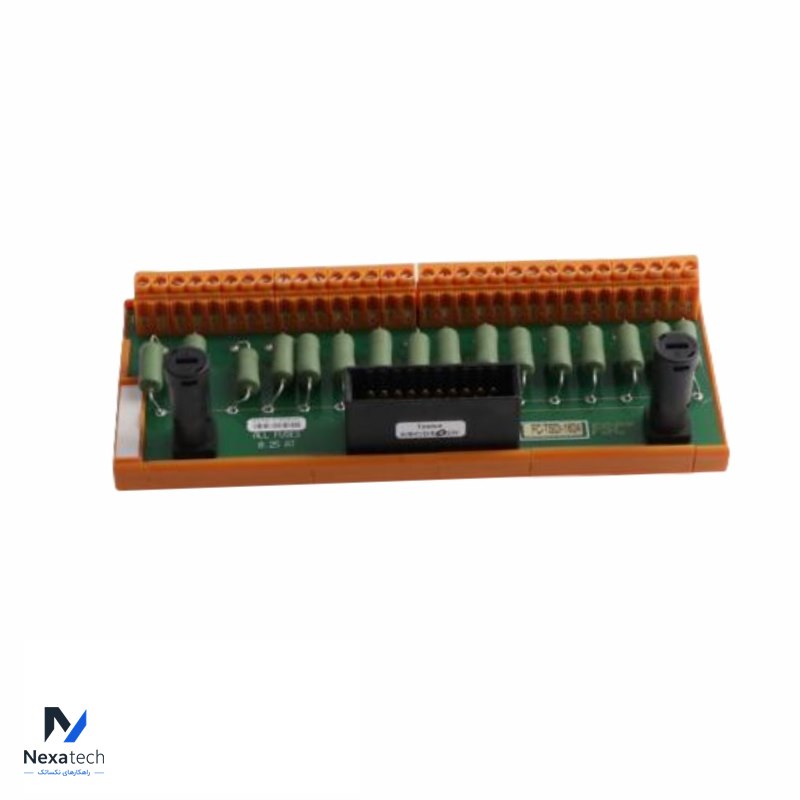

HONEYWELL FS-TSRO-0824 Digital Output Field Termination Assembly

Specification

Brand Name

HONEYWELL

Nominal Input Voltage: 24 Vdc
Input Current: Typically 40 mA at 24 Vdc
Number of Output Channels: 8
Maximum Output Current: 5 A (fused)
Minimum Output Current: 1 mA at 5 V
Maximum Output Voltage: 250 Vac / 250 Vdc
Maximum Switched Load: 1250 VA / 150 W
Screw Terminals Maximum Wire Diameter: 2.5 mm²
Ambient Temperature: –5°C to +60°C (23°F to 140°F)
Maximum Switching Frequency: 20 Hz

Model Number

FS-TSRO-0824

Alternate Part Number

FS-TSRO-0824

Condition

100% Original

Dimensions

30x7x6cm

Description

Digital Output Field Termination Assembly

Weight

0.32 kg

Warranty

12 Months
