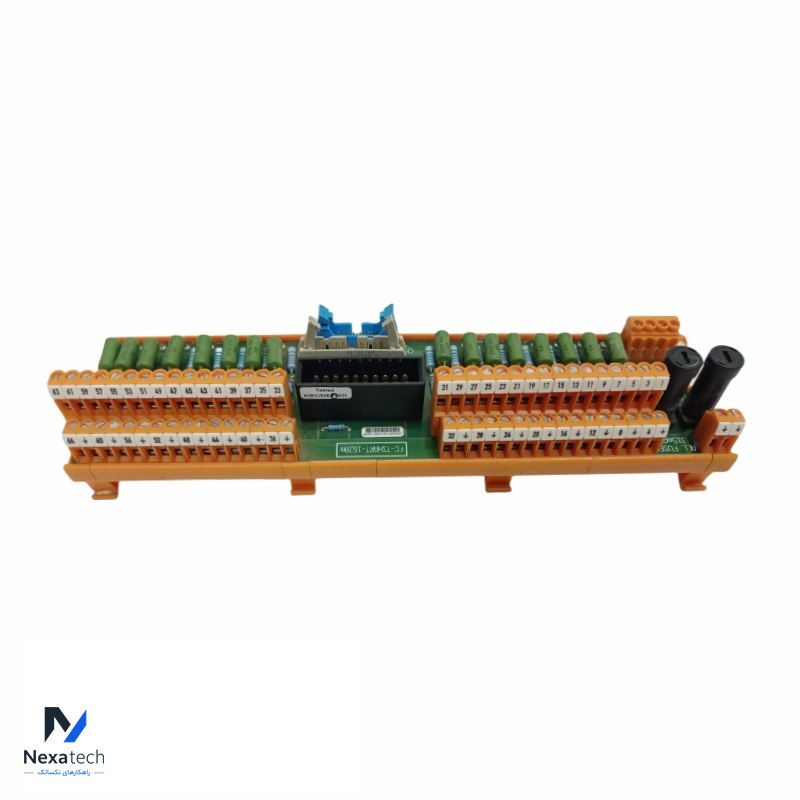

HONEYWELL FS-TSGAS-1624 Digital Input Field Termination Assembly

Specification

Brand Name

HONEYWELL

Number of Input Channels: 16
Power Requirements: 24 Vdc external 3 mA
Input Current Range: 0 to 25 mA
Accuracy: 0.1%
Input Resistance: 500 Ohm (± 5%)
Output Voltage: 0 to 4 Vdc
Fuse Rating: 500 mAT
Screw Terminals Maximum Wire Diameter: 2.5 mm²

Model Number

FS-TSGAS-1624

Alternate Part Number

FS-TSGAS-1624

Condition

100% Original

Dimensions

22.5x7x6cm

Description

Digital Output Field Termination Assembly

Weight

0.22kg

Warranty

12 Months
