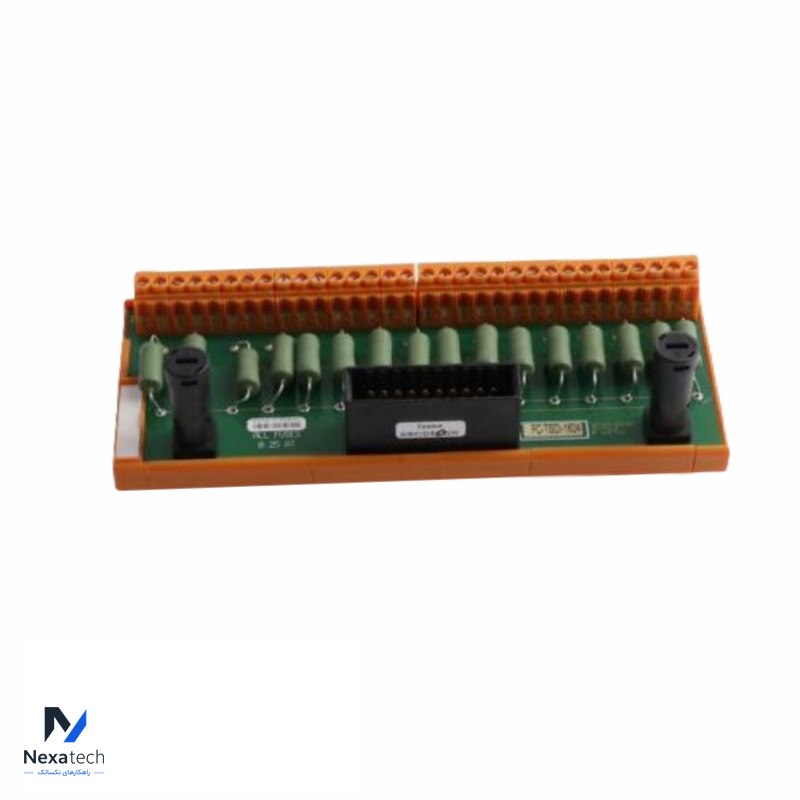

HONEYWELL FS-TSAI-1620M Field termination assembly module

Specification

Brand Name

HONEYWELL

Number of Input Channels: 16 (2 groups of 8 with common 0 V)
Power Requirements: 30 Vdc external
Input Current: 0 to 25 mA
Input Resistance: 250 Ohm (± 1%)
Output Resistance: 270 Ohm (± 5%)
Output Voltage: 0 to 4 Vdc
Accuracy: 0.1%
Maximum Loop Inductance: 6 mH
Maximum Loop Capacitance: 0.25 µF
Tightening Torque: 0.5 Nm (0.37 ft-lb)

Model Number

FS-TSAI-1620M

Alternate Part Number

FS-TSAI-1620M

Condition

100% Original

Dimensions

21x7x6cm

Description

Field termination assembly module

Weight

0.14 kg

Warranty

12 Months
