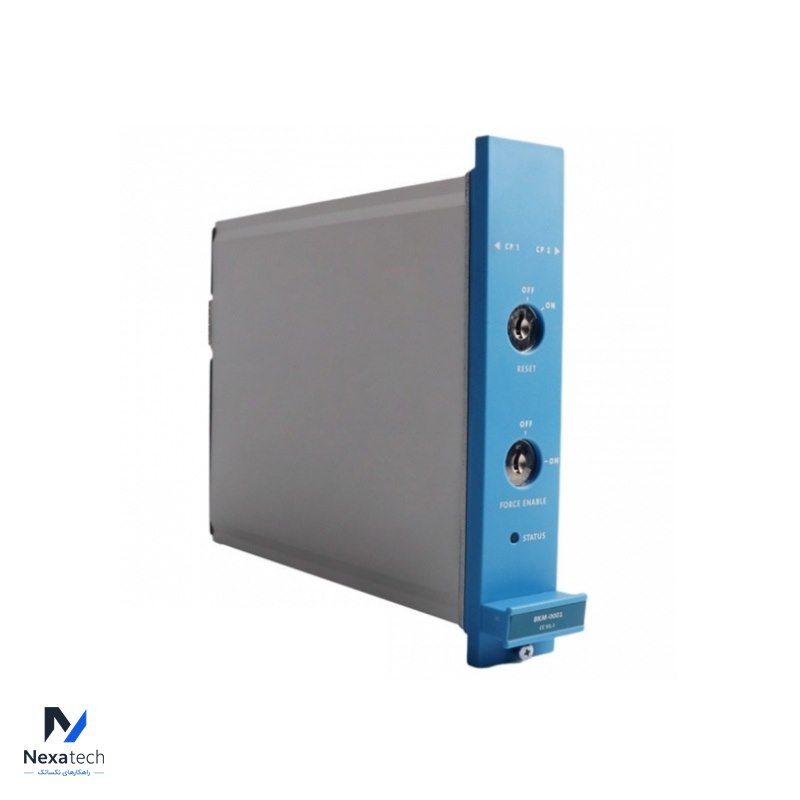

Honeywell FC-USI-0001 V1.3 Universal Safety Interface

The Honeywell FC-USI-0001 V1.3 Universal Safety Interface (USI-0001) is a communication module designed for Honeywell's Safety Manager system, ensuring safe and reliable operations in critical process control environments. Here are the key features and components:

Key Features:
Hardware Firewall: The USI-0001 module acts as a hardware firewall, providing protection for the safety functions of the Safety Manager. It ensures that communication between the safety system and external devices is secure and isolated, preventing unauthorized access or interference.

Components and Architecture:
Motorola 8260 Communication Processor: The module is built around a Motorola 8260 processor, a powerful communication processor designed for high-performance network and system integration tasks.
EEPROM: Used to store module-specific data, such as two MAC addresses and the hardware revision number. This ensures proper identification and configuration of the module within the system.
Flash Memory (8 Mbyte): The module includes 8 Mbytes of flash memory, which is used to store both the system and application programs. This memory is non-volatile and can be updated in-place, allowing for software upgrades without removing the module from the controller chassis.

Local SRAM (4 Mbyte): The USI-0001 features 4 Mbytes of local SRAM for system and application execution. This SRAM is equipped with Error Detecting and Correcting (EDAC) logic to ensure data integrity during operations.
Shared RAM (256 KB): 256 KB of shared RAM is used for efficient data exchange between the USI-0001 and the Control Processor, facilitating fast communication within the system.
Dual-Speed Ethernet Transceivers: The module is equipped with two dual-speed fast Ethernet transceivers, enabling high-speed communication over the network. This ensures quick data transmission and reception, essential for real-time process control.
Serial Communication Channels: The module includes two general-purpose serial communication controller channels, allowing for additional communication interfaces with external devices or systems.

Applications:
The FC-USI-0001 module is a critical part of Honeywell's Safety Manager systems, typically used in industries such as oil & gas, power generation, and chemical processing, where safety and reliability are of paramount importance. By acting as a communication gateway and hardware firewall, it ensures that safety-critical functions are isolated and protected while allowing for seamless and secure data exchange.
