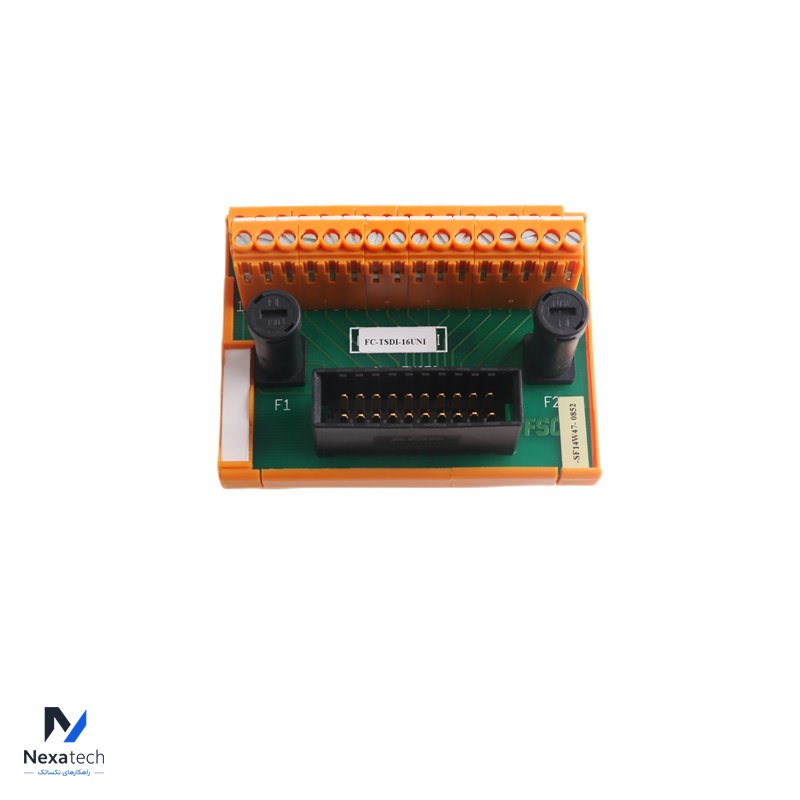

Name: Honeywell FC-TSDI-16UNI Safe digital input module
Brand: Honeywell
SKU: FC-TSDI-16UNI
Availability: InStock

مشخصات فنی

Brand Name:	HOENYWELL
Model Number:	FC-TSDI-16UNI
Alternate Part Number	TSDI-16UNI
Condition:	100% Original
Dimensions	12.7 cm x 5.1 cm x 20.3 cm	Weight	0.7kg
Description	Safe digital input FTA (24/48 V DC, NAMUR, 16 channels)	Warranty:	12 Months

The Honeywell FC-TSDI-16UNI is a Field Termination Assembly (FTA) module designed for safe digital input applications. Here are the detailed specifications and features:

Features
Channel Grouping: Channels are grouped into two sets of eight, each with its own fuse protection.
Snap-in Mounting: Easy installation with snap-in provision for DIN EN rails.
Field Wiring: Provides reliable connections for external field wiring with screw terminals.
Integration: Connects to SDIL-1608 modules via the SICC-0001/Lx cable for seamless integration.
Safety Compliance: Designed to meet safety and performance standards for digital input applications.

Parameter	Specification
General Type Numbers	FS-TSDI-16UNI, FC-TSDI-16UNI
Approvals	CE, TUV, UL, CSA, FM
Power	24/48 V DC
Number of Channels	16 (2 groups of 8)
Maximum Voltage	50 V DC - IEC 61010-1 (1990), over voltage category 3 (Table D.12)
	150 V DC - IEC 61010-1 (1990), over voltage category 2 (Table D.10)
Actual Maximum Voltage	Defined by the connected input module
Physical Dimensions	90 × 70 × 60 mm (L × W × H)
	3.54 × 2.76 × 2.36 in (L × W × H)
DIN EN Rails	TS32 / TS35 × 7.5
Used Rail Length	91 mm (3.58 in)
Fuse Rating	250 mA
Fuse Dimensions	5 × 20 mm
Voltage Rating AC	400 V
Voltage Rating DC	400 V
Manufacturer	SOC
Manufacturer PN	SHV12 250 mA
Maximum Output Current per Fuse	175 mA
