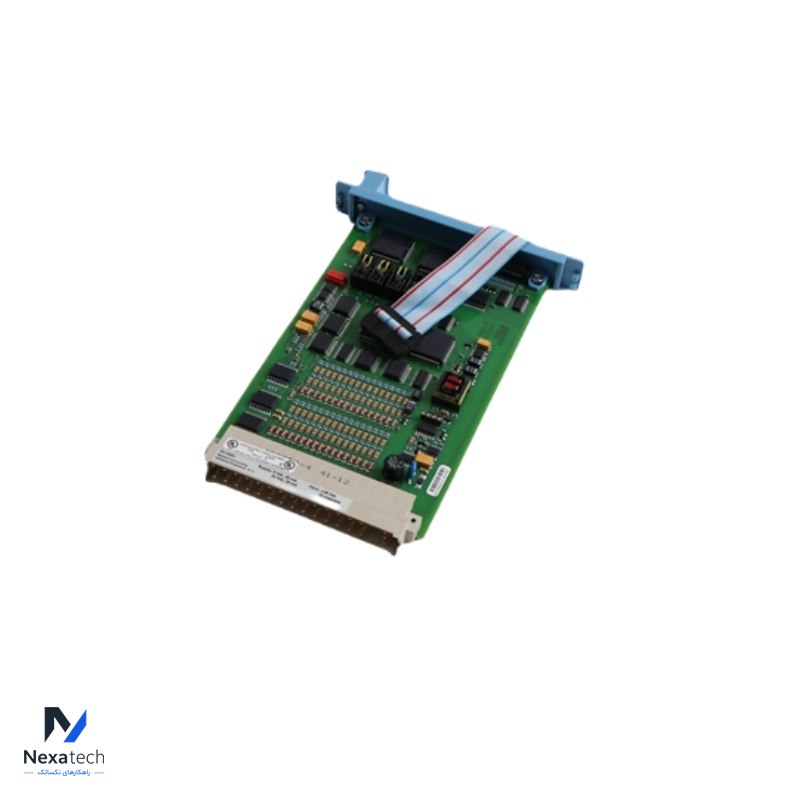

Honeywell FC-SAO-0220M Safe analog output module

The Honeywell FC-SAO-0220M Safe Analog Output Module is designed for high-integrity safety and control applications, providing precise and reliable analog output control. Here’s a detailed overview of its features and specifications:

Key Features:
Analog Outputs: Equipped with two 0(4)—20 mA output channels for analog control applications. Each channel is designed to handle resistive or capacitive loads but not inductive loads.
Galvanic Isolation: The outputs are galvanically isolated from the 24 V DC and 5 V DC power supplies, enhancing safety and reducing the risk of electrical interference.
Diagnostic Testing: Includes comprehensive diagnostic capabilities to ensure the correct functioning of the analog outputs:

Output Value Accuracy: Checks if the output value is within ±5% of the intended value.
De-energizing Capability: Verifies that the outputs can be de-energized as required.
Cross Talk Testing: Monitors for any interference between the two analog outputs.
A/D Conversion: Each output channel includes an A/D converter to read and verify the output value, ensuring accuracy and reliability.
Secondary De-Energizing: Features a secondary means of de-energizing (SMOD), allowing the watchdog and processor to de-energize the outputs regardless of the application value.

Technical Specifications:
Output Channels: Two analog outputs with 0(4)—20 mA range.
Load Types: Supports resistive and capacitive loads. Inductive loads are not supported.
Isolation: Galvanic isolation from the 24 V DC and 5 V DC power supplies.
Resolution: 12-bit resolution for both the D/A and A/D converters.
Diagnostic Test Interval: Configurable interval for performing diagnostic tests.
De-Energizing: Includes a secondary de-energizing mechanism to ensure safe operation.

Applications:
Industrial Control Systems: Ideal for applications requiring precise analog output control and high safety integrity.
Process Control: Used in process control environments where accurate analog signals are crucial.
Safety Systems: Suitable for safety-critical applications where reliable output and diagnostics are necessary.

Installation and Maintenance:
Mounting: Typically mounted on DIN rails or within control panels, designed for easy integration into existing systems.
Configuration: Configured using Honeywell’s system tools, allowing for customization based on specific application needs.
Diagnostics: Provides detailed diagnostics and status indicators to support system health monitoring and troubleshooting.
The Honeywell FC-SAO-0220M Safe Analog Output Module is essential for ensuring accurate and reliable analog output in safety-critical and industrial control applications, providing robust diagnostics and fault tolerance.
