Honeywell FC-FANWR-24R Fan Assembly Kit

The Honeywell FC-FANWR-24R Fan Assembly Kit is designed to provide reliable cooling and ventilation for various industrial applications. Here’s a detailed overview of its features and specifications:

Key Features:

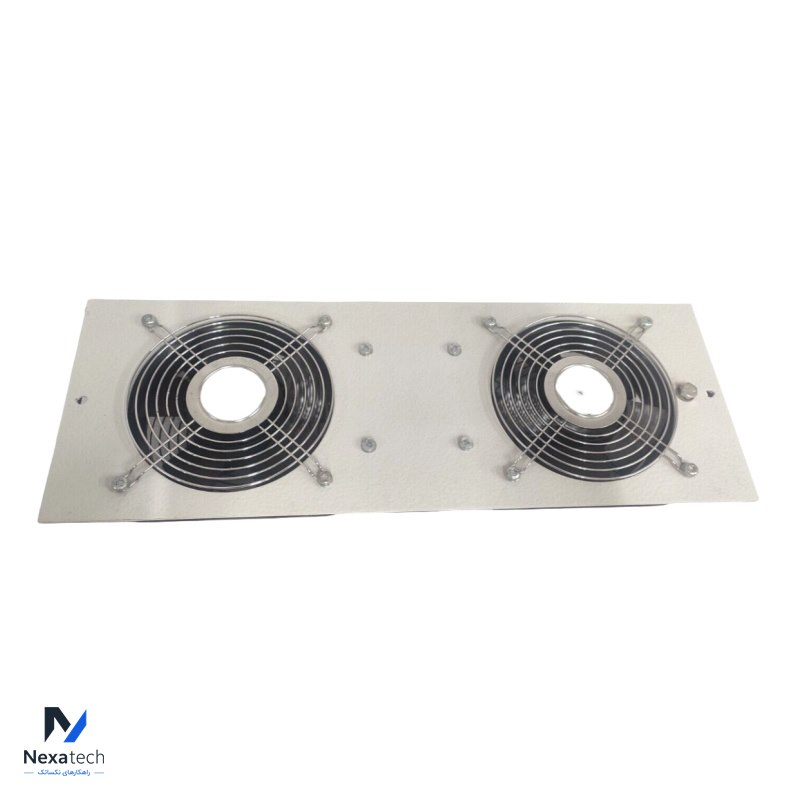

Fan Assembly: The unit includes two 24 V DC fans mounted on a plate with a printed circuit board (PCB) labeled 07209. This design helps ensure efficient cooling.
Power and Wiring: External 24 V DC power and readback contact wiring connect via a 4-pole connector that slots into the fan unit, simplifying installation and maintenance.
Status Indicators: The electronics within the fan unit generate signals to indicate fan status:
Green LED Indicator: Lights up when the speed of each fan is above the minimum threshold, providing a visual confirmation of operational status.

Readback Contact: Closes when both fans are operating above the minimum speed, allowing for remote monitoring of fan performance.
Safety Features: Finger guards are mounted on both sides of the fans to protect users from accidental contact with the moving blades.
Airflow Direction: Includes details on airflow direction to ensure proper installation and performance.

Technical Specifications:
Voltage: Operates on 24 V DC.
Connector: 4-pole connector for power and readback contact.
PCB: The fan unit features a PCB (07209) for managing fan operation and status signaling.
Indicator LEDs: Green LEDs provide visual status indication of fan speed.
Safety Guards: Finger guards are included to enhance safety by preventing accidental contact with the fan blades.

Installation and Layout:
Mounting Plate: The fans and PCB are mounted on a plate for easy installation.
Airflow Direction: The kit includes information on the direction of airflow, ensuring proper setup for effective cooling.
Applications:
This fan assembly is typically used in systems requiring reliable cooling to maintain optimal operating temperatures for electronic equipment and other components. It’s suitable for various industrial environments where robust performance and safety are crucial.
