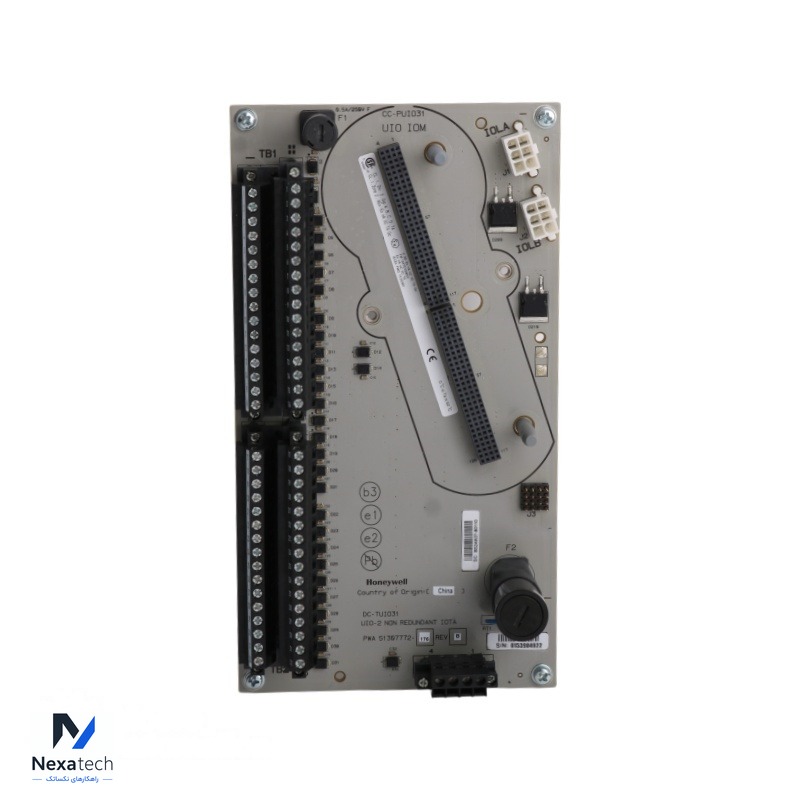

HONEYWELL DC-TUIO31 51307772-176 Analog Input Module

Name: HONEYWELL DC-TUIO31 51307772-176 Analog Input Module
Brand: Honeywell
SKU: DC-TUIO31 51307772-176
Availability: InStock

پارت‌نامبر: DC-TUIO31 51307772-176

توضیحات محصول

Analog Input Module

Specification
Brand Name	HONEYWELL	Input Channels: 32 maximum per module A/D Converter Resolution: 16 bit Input Range: 0–20 mA or 4–20 mA Normal Mode Rejection Ratio: 18 dB at 50 Hz, 20 dB at 60 Hz Input Filter Response: Single pole, -3 dB @ 6 Hz Crosstalk (dc to 60 Hz, channel-to-channel): 60 dB Input Impedance: 250 Ω Input Voltage Range: +33 VDC to -1 VDC Input Scan Rate: 10 ms Short Circuit Current Limit: 25 mA



Model Number	DC-TUIO31
Alternate Part Number	51307772-176
Condition	100% Original
Dimensions	22x12x6.5cm
Description	Analog Input Module
Weight	0.45 kg
Warranty	12 Months
