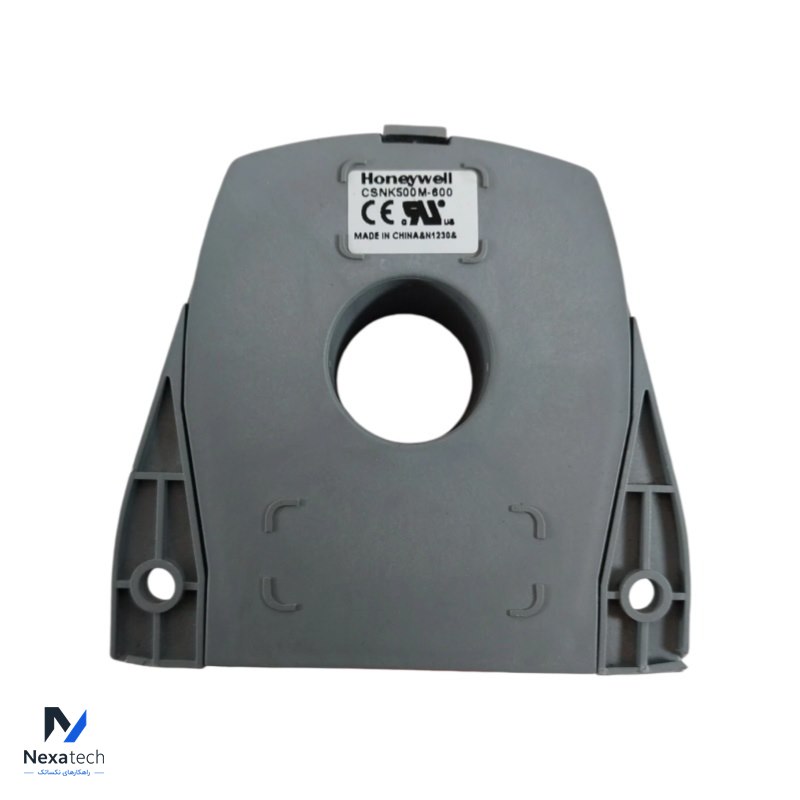

Honeywell CSNK500M-600 Closed Loop Current Transducer

Name: Honeywell CSNK500M-600 Closed Loop Current Transducer
Brand: Honeywell
SKU: CSNK500M-600
Availability: InStock

پارت‌نامبر: CSNK500M-600

توضیحات محصول

Closed Loop Current Transducer

Specification
Brand Name	Honeywell	Nominal current (In) : 500 A.t rms Nominal analogue output current at 500A : 100 mA Supply voltage : ±15 to ±18 Vdc (±5%) Galvanic isolation : 6 kV rms / 50 Hz / 1 minute Response time : better than 1µs Bandwidth : DC to 100 kHz Operating temperature : -40°C to +85°C Storage temperature : -40°C to +90°C Current consumption : 20 mA plus output current Secondary internal resistance (at +70°C) : 50 ohm



Model Number	CSNK500M-600
Alternate Part Number	CSNK500M-600
Condition	100% Original
Dimensions	9x8.4x3.1cm
Description	Closed Loop Current Transducer
Weight	0.24 kg
Warranty	12 Months
