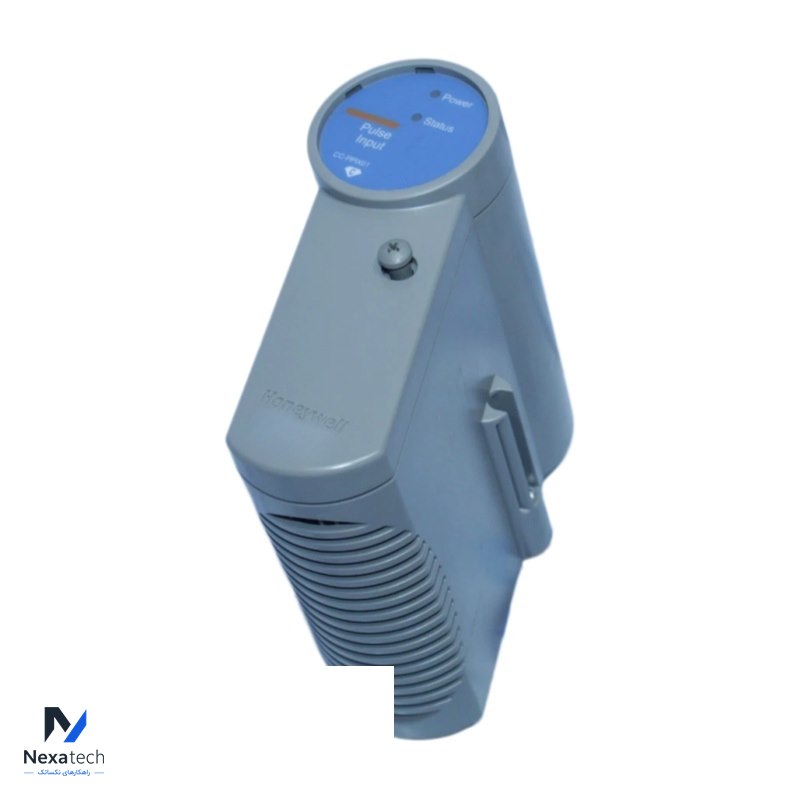

HONEYWELL CC-PPIX01 51410089-175 Pulse Input Module

Name: HONEYWELL CC-PPIX01 51410089-175 Pulse Input Module
Brand: Honeywell
SKU: CC-PPIX01 51410089-175
Availability: InStock

پارت‌نامبر: CC-PPIX01 51410089-175

توضیحات محصول

Pulse Input Module

Specification
Brand Name	HONEYWELL	Number of Inputs: 8 (Single) or 4 (Dual) Number of Outputs: 2 Frequency Range: 0 - 100 KHz Single Channel Frequency Accuracy (0.5 Hz – 100 KHz): ±0.001% of Reading Input Voltage (Independent of Input Voltage Range): 0 to 35 VDC Channel Input Impedance: Greater than 70 K Ohms Fast Cutoff Latency: 1 ms (max) Voltage: 5 V to 60 VDC Current: 0.001 A to 2 A Off State Leakage Current: 100 µA max at 60 VDC



Model Number	CC-PPIX01
Alternate Part Number	51410089-175
Condition	100% Original
Dimensions	55x15.5x14.5cm
Description	Pulse Input Module
Weight	0.3 kg
Warranty	12 Months
