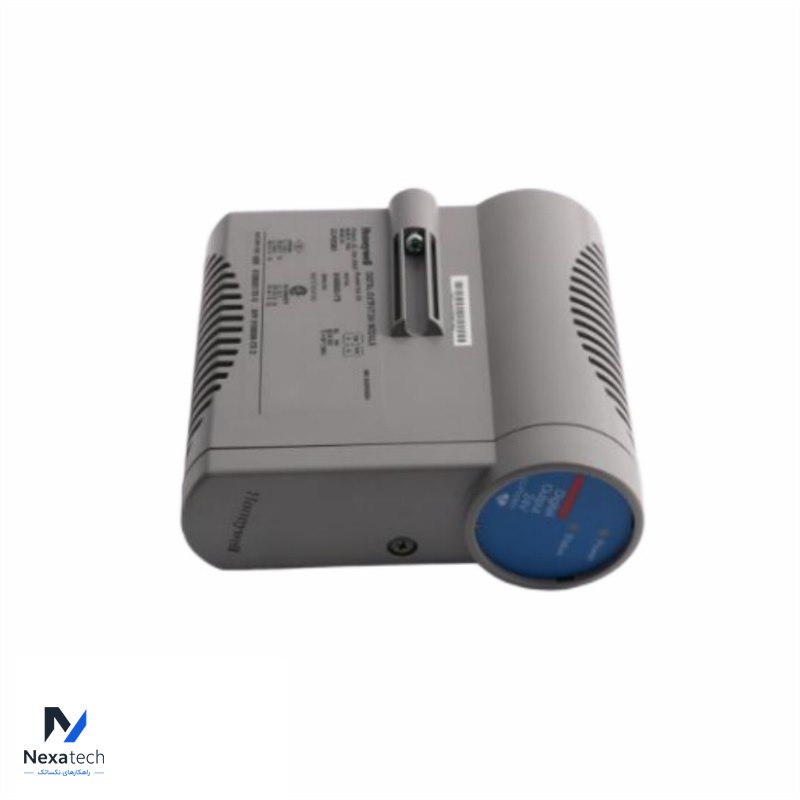

Honeywell CC-PDOB01 51405043-176 Digital Output – Relay IOTA
توضیحات محصول
مشخصات فنی
| Brand Name: | HOENYWELL | ||
| Model Number: | CC-PDOB01 | ||
| Alternate Part Number | 51405043-176 | ||
| Condition: | 100% Original | ||
| Dimensions | 12.7 cm x 5.1 cm x 20.3 cm | Weight | 0.7kg |
| Description | Digital Output – Relay IOTA | Warranty: | 12 Months |
| | | | |
The CC-PDOB01 Relay IOTA is a versatile module suitable for various relay-based output needs in industrial and control systems.Here is a detailed overview of the Honeywell CC-PDOB01 51405043-176 Digital Output – Relay IOTA:
Key Details:
Product Number: 51405043-176
Model: CC-PDOB01
Product Type: Digital Output – Relay IOTA
Description:
The Digital Output Relay IOTA is designed to provide a dry contact for both low voltage/low current and high voltage/high current discrete output applications. It offers flexibility in various industrial automation scenarios where relay-based switching is required.
Features:
Relay Type:
Supports Form-A (normally open) or Form-B (normally closed) output configurations.
Relay output type is configurable via jumper settings.
Output Characteristics:
Dry Contact: Isolated contacts suitable for switching low voltage or high voltage, low current or high current loads.
Relay Support: Utilizes the Digital Output 24V (DO24V) IOM, integrated with a special IOTA to support relay functionality.
Integration:
DO24V IOM: The Relay IOTA incorporates all characteristics of the DO24V IOM, meaning it is compatible with and leverages the existing features of the DO24V IOM.
| Parameter | Specification |
| Output Channels | 32 isolated Form A (SPST/NO) or Form B (SPST/NC) contacts (jumper selectable per output) |
| Contact Type | AgSnO₂ |
| Maximum Load Voltage | 250 VAC (RMS) / 125 VDC |
| Maximum Steady State Load Current per Output | 3 A → 125 / 250 VAC (resistive) |
| 3 A → 30 VDC (resistive) | |
| 1 A → 48 VDC (resistive) | |
| 0.2 A → 125 VDC (resistive) | |
| 2 A → 125 / 250 VAC (inductive = 0.4 power factor) | |
| 1 A → 30 VAC (inductive L/R = 100 ms) | |
| 0.3 A → 48 VAC (inductive L/R = 100 ms) | |
| 0.1 A → 125 VAC (inductive L/R = 100 ms) | |
| Minimum Load Voltage | 12 VDC |
| Minimum Load Current | 100 mA |
| Inrush Current (Max) | 10 A for 4 seconds at a 10% duty cycle |
| Isolation (Channel-to-channel, and channel-to-logic common) | 1500 VAC RMS or ±1500 VDC |
| Turn On Time | 20 ms maximum |
