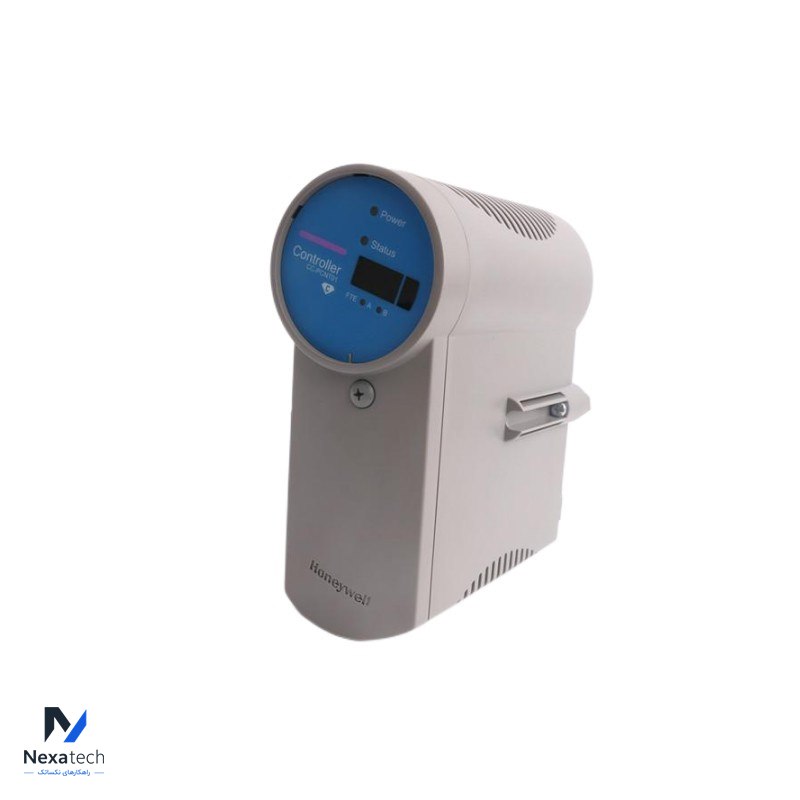

HONEYWELL CC-PAOH01 51405039-175 Analog Output Module

Name: HONEYWELL CC-PAOH01 51405039-175 Analog Output Module
Brand: Honeywell
SKU: CC-PAOH01 51405039-175
Availability: InStock

پارت‌نامبر: CC-PAOH01 51405039-175

توضیحات محصول

Analog Output Module

Specification
Brand Name	HONEYWELL	Output Type: 4-20 mA Output Channels: 16 Output Ripple: < 100 mV peak-to-peak at power line frequency, across 250 Ω load Output Temperature Drift: 0.005% of Full Scale/°C Output Readback Accuracy: ±4% of Full Scale Calibrated Accuracy: ±0.35% of Full Scale (25°C) including linearity Maximum Resistive Load: 800 ohms Maximum Output Compliant Voltage: 16 V Maximum Open Circuit Voltage: 22 V Gap (0 mA) of Output to Field on Switchover: 10 ms maximum



Model Number	CC-PAOH01
Alternate Part Number	51405039-175
Condition	100% Original
Dimensions	5.5x16.2x14.5cm
Description	Analog Output Module
Weight	0.42kg
Warranty	12 Months
