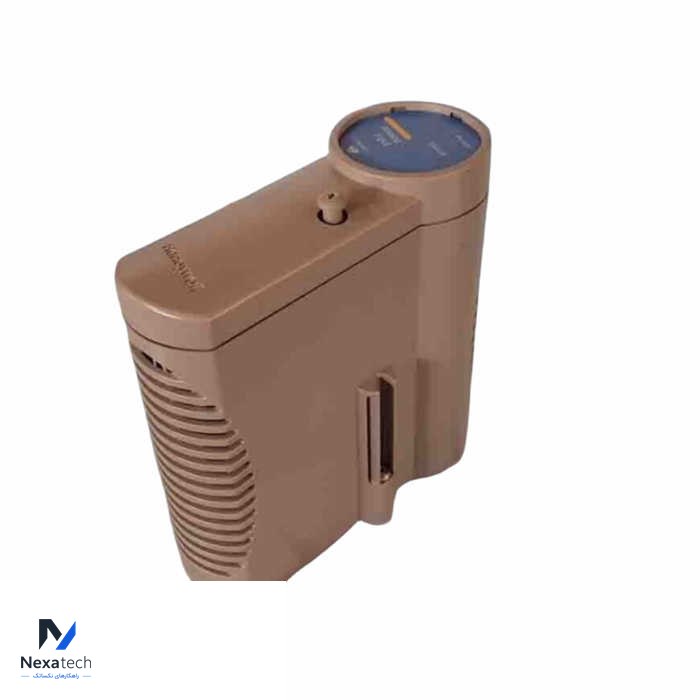

Honeywell CC-PAIN01 51410069-175 Analog Input Module

The Honeywell CC-PAIN01 Analog Input Module is designed to handle high-level current inputs from various sensing devices. Here's a detailed overview of its features and specifications:

Key Features and Specifications:
Manufacturer: Honeywell
Product Number: CC-PAIN01
Type: Analog Input Module
Functionality:
Input Type: Accepts high-level current inputs, typically in the 4-20 mA range, which is standard for many industrial sensors and transmitters.
Application: Used in process automation and control systems to interface with sensors that provide analog current signals. This module converts these signals into a format that can be processed by the control system.

Specifications:
Input Range:
Current Input: Designed to handle inputs in the 4-20 mA range, which is common for industrial process sensors.
Resolution and Accuracy:
Resolution: High resolution to ensure accurate measurement of input signals.
Accuracy: Provides precise measurement and conversion of the input current signal to digital values for processing.
Isolation: Typically includes isolation features to protect the control system from electrical noise and potential faults in the input signals.
Environmental Ratings:
Operating Temperature: Designed to operate within a specified temperature range to suit industrial environments.
Humidity and Corrosion: May be rated for certain levels of humidity and environmental conditions, but specifics would be detailed in the product datasheet.
