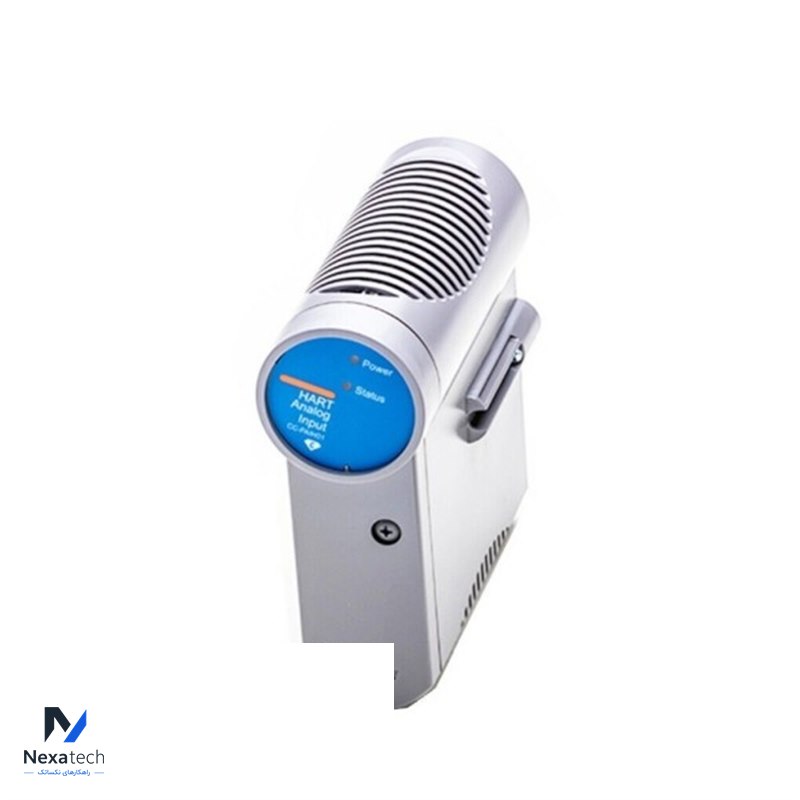

HONEYWELL CC-PAIH02 51405038-376 Analog Input Module

Name: HONEYWELL CC-PAIH02 51405038-376 Analog Input Module
Brand: Honeywell
SKU: CC-PAIH02 51405038-376
Availability: InStock

پارت‌نامبر: CC-PAIH02 51405038-376

توضیحات محصول

Analog Input Module

Specification
Brand Name	HONEYWELL	Input Channels: 16 channels (12 single-ended / 4 differential) Common Mode Rejection Ratio: 70 dB Common Mode Voltage: -6 to +5 V peak A/D Converter Resolution: 16 bits Normal Mode Rejection Ratio: 19 dB Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 Hz Maximum Normal Mode Input: ±30 V Crosstalk: -60 dB Input Impedance: >10 MΩ powered Input Scan Rate: 50 ms



Model Number	CC-PAIH02
Alternate Part Number	51405038-376
Condition	100% Original
Dimensions	5.5x16.2x14.5cm
Description	Analog Input Module
Weight	0.4kg
Warranty	12 Months
