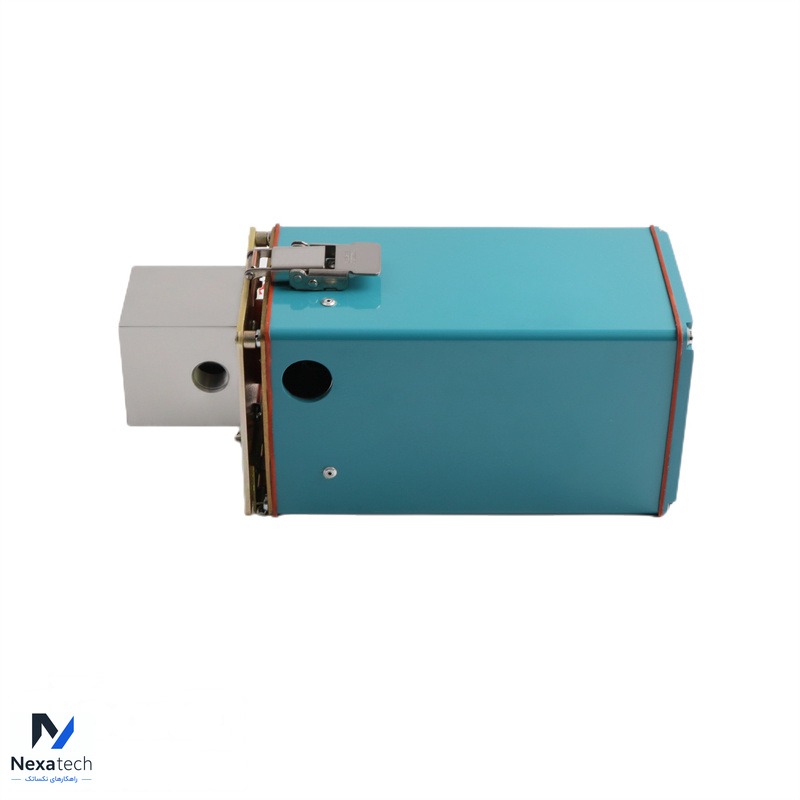

Honeywell C7076A1015 C7076 Ultraviolet Flame Detector
توضیحات محصول
مشخصات فنی
| Brand Name: | HOENYWELL | ||
| Model Number: | C7076A1015 | ||
| Alternate Part Number | C7076A1015 | ||
| Condition: | 100% Original | ||
| Dimensions | 46.2x12x5.5cm | Weight | 1.18kg |
| Description | C7076 Ultraviolet Flame Detector | Warranty: | 12 Months |
| | | | |
The Honeywell C7076A1015 C7076 Ultraviolet Flame Detector is a solid-state flame detector designed for reliable flame detection in various industrial applications. Here’s a detailed overview of its features and specifications:
Key Features:
Model: C7076A1015 (Adjustable Sensitivity Ultraviolet Flame Detector)
Type: Solid-state dynamic self-checking flame detector
Application: Gas fired and oil fired burners
Adjustable Sensitivity: Allows for dual sensitivity adjustment to suit different applications.
| Parameter | Specification |
| Used With | Flame Amplifiers: R7476, R7886 |
| Dimensions (in.) | 4 in. high x 4 in. wide x 10 1/4 in. deep |
| Dimensions (mm) | 102 mm high x 102 mm wide x 261 mm deep |
| Weight (lb) | 6.6 lb |
| Weight (kg) | 3 kg |
| Mounting | 1 in. NPT |
| Electrical Ratings | 100 Vac |
| Frequency | 50 Hz; 60 Hz |
| Power Consumption | 7.0 W |
| Electrical Connections | Terminal block |
| Vibration | 0.5 G max |
| Ambient Temperature Range (F) | -40 °F to +160 °F |
| Ambient Temperature Range (C) | -40 °C to +71 °C |
| Approvals | - Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ |
| - Canadian Standards Association: Certified: Master Report LR1620 | |
| - Swiss RE: Acceptable | |
| - Factory Mutual: Approved: Report No. FM26980 | |
| Viewing Window Rating | - C7076A: Rated to 20 psi |
| - C7076D: Explosion-proof housing with viewing window rated to 100 psi |
Additional Information:
Detection: Detects ultraviolet radiation from flames, providing reliable flame monitoring.
Self-Checking: Includes dynamic self-checking to ensure proper operation.
Enclosure:
C7076A: Meets NEMA 4 standards.
C7076D: Explosion-proof housing for hazardous atmospheres.
The C7076A1015 is designed for use with Honeywell's Flame Safeguard primary safety controls, making it suitable for applications requiring adjustable sensitivity ultraviolet flame detection.
