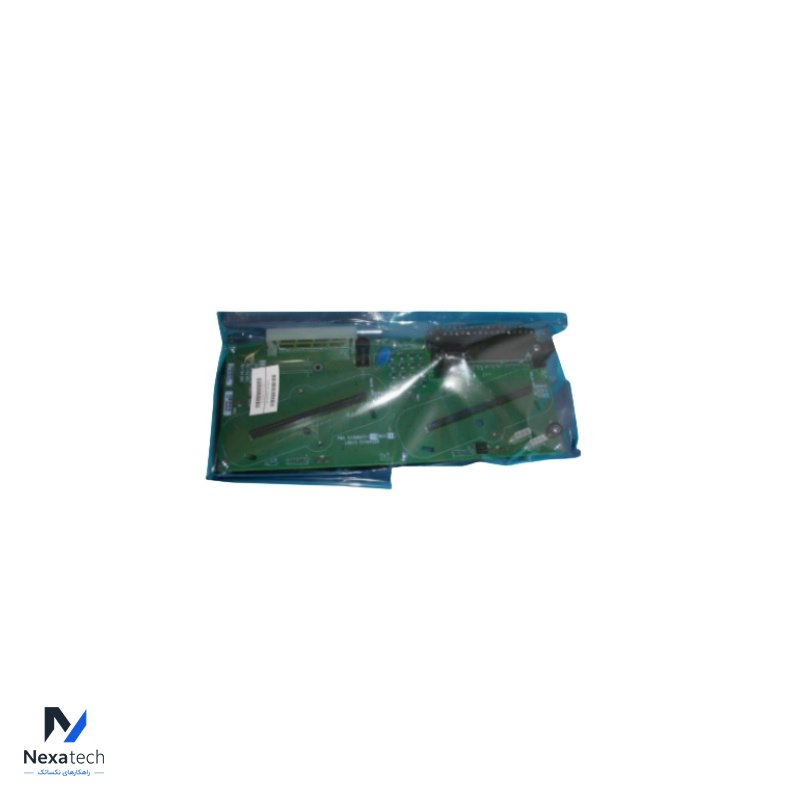

Honeywell 8C-TDOD61 51306973-175 Digital Output – SINKTYPE 24VDC

The Honeywell 8C-TDOD61 51306973-175 is a Digital Output module designed for industrial automation systems. It provides reliable switching of 24V digital output signals for controlling various process equipment and devices.

Key Features and Specifications:
Part Number: 51306973-175
Module Type: Digital Output – Sink Type
Voltage: 24V DC
Output Type: Sink Type (current sinking)
Output Channels: Typically supports 8 channels for discrete output signals
Key Features:
Output Type: Sink type, meaning it provides a path to ground for the current, controlling the connected devices by completing the circuit.
Voltage Range: Operates at 24V DC, suitable for a wide range of industrial control applications.

Reliability: Designed for reliable switching of digital output signals to control process equipment, solenoid valves, and relays.
Isolation: Provides electrical isolation to protect the control system from field device transients and noise.
Durability: Built to withstand industrial environments and provide robust performance in demanding applications.
Specifications:
Output Voltage: 24V DC
Output Current: Typically handles up to 0.5A per channel (verify specific current rating in detailed documentation).
Output Channels: 8 channels for discrete output signals
Isolation: Electrical isolation to protect the system
Protection: Includes features to protect against short circuits and overload conditions
Applications:
Process Control: Used to control various process equipment, including motors, valves, and other actuators.
Automation Systems: Integrates with automation systems for controlling discrete outputs in industrial processes.
Relay Control: Can control interposing relays for switching higher power loads.
Installation:
Mounting: Fits into standard Honeywell control racks or similar enclosures.
Wiring: Connects to field devices and power sources using terminal blocks for easy integration.
