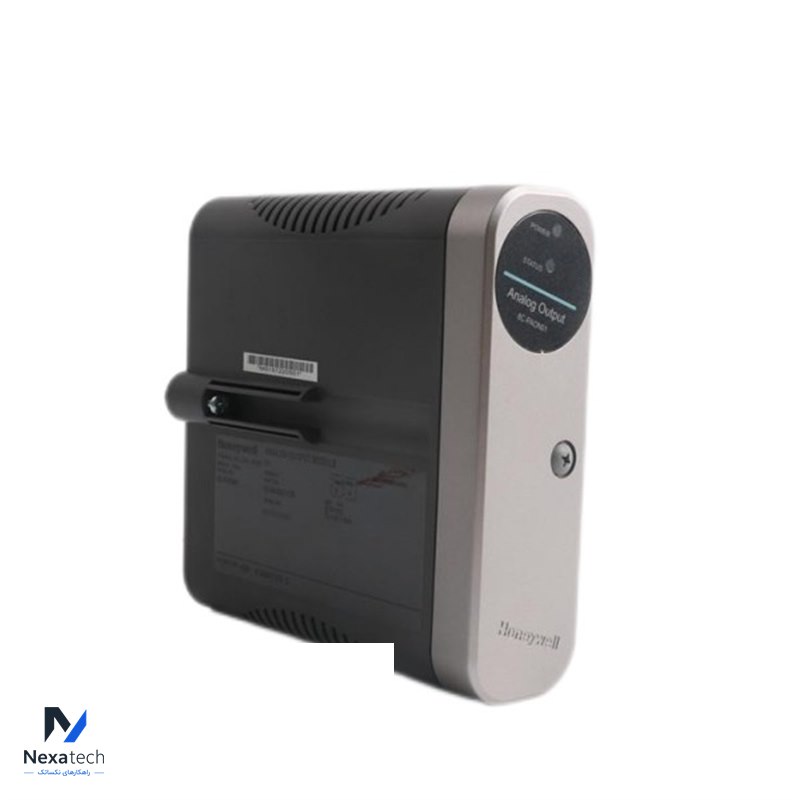

Name: Honeywell 8C-TAOX61 51306981-175 Analog Output with HART
Brand: Honeywell
SKU: 8C-TAOX61 51306981-175
Availability: InStock

Brand Name:	HOENYWELL
Model Number:	8C-TAOX61
Alternate Part Number	51306981-175
Condition:	100% Original
Dimensions	46.2x12x5.5cm	Weight	1.18kg
Description	Analog Output with HART	Warranty:	12 Months

The Honeywell 8C-TAOX61 51306981-175 Analog Output Module with HART is a versatile component used in process control systems for precise control and monitoring. Here's an overview of its features:

Key Features:
Manufacturer: Honeywell
Product Number: 8C-TAOX61 51306981-175
Type: Analog Output Module with HART capability
Function: The Analog Output (AO) module is designed to deliver a high-level constant current to various output devices, such as actuators, valves, and recording or indicating instruments.

Specifications:
HART Capability: The module supports HART (Highway Addressable Remote Transducer) communication, which allows for enhanced device diagnostics, remote calibration, and configuration. HART communication is superimposed on the 4-20 mA analog signal, providing advanced field data.
Output: Provides precise analog output signals, typically in the 4-20 mA range, which is standard for control signals in industrial processes.
Applications: Used to control devices such as valves, actuators, or motor drives, converting digital control signals into analog currents for precise operational control.
Reliability: Designed for critical control and automation environments, providing highly reliable performance, even in demanding industrial applications like oil & gas, petrochemical, and power plants.

Parameter	Specification
Output Type	4-20 mA
Output Channels	16
Output Ripple	< 100 mV peak-to-peak at power line frequency, across 250Ω load
Output Temperature Drift	0.005% of Full Scale/°C
Output Readback Accuracy	±4% of Full Scale
Output Current Linearity	±0.05% of Full Scale nominal
Resolution	±0.05% of Full Scale
Calibrated Accuracy	±0.35% of Full Scale (at 25°C) including linearity
Directly Settable Output Current Range	0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load	800 ohms (with 24 V supply = 22 VDC through 28 VDC)
Maximum Output Compliant Voltage	16 V (with 24 V supply = 22 VDC through 28 VDC)
Maximum Open Circuit Voltage	22 V
