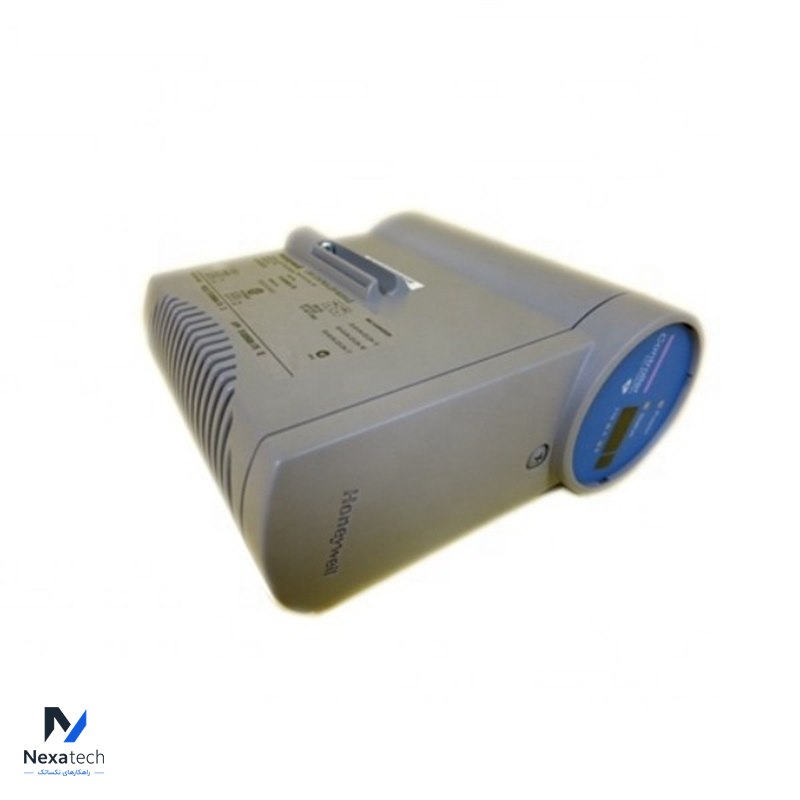

Name: Honeywell 8C-TAIXA1 51307127-175 ANALOG INPUT MODULE
Brand: Honeywell
SKU: 8C-TAIXA1 51307127-175
Availability: InStock

مشخصات فنی

Brand Name:	HOENYWELL
Model Number:	8C-TAIXA1
Alternate Part Number	51307127-175
Condition:	100% Original
Dimensions	12x6.5x14.5cm	Weight	0.26kg
Description	ANALOG INPUT MODULE	Warranty:	12 Months

The Honeywell 8C-TAIXA1 51307127-175 Analog Input IOTA module is designed for use in Honeywell's control systems, providing high-precision analog input capabilities. Here’s a detailed overview of its features and specifications:

Key Features:
Model: 8C-TAIXA1
Part Number: 51307127-175
Type: Analog Input IOTA (Input/Output Terminal Assembly)
Input Type: Single Ended
Coating: Coated for protection in harsh environments

Parameter	Specification
A/D Converter Resolution	16 bits
Module Removal and Insertion	Under power supported
Input Range	4-20 mA (through 250 Ω)
Normal Mode Rejection Ratio, at 60 Hz	19 dB
Normal Mode Filter Response	Single-pole RC, -3 dB @ 6.5 Hz
Crosstalk, dc to 60 Hz (channel-to-channel)	-60 dB
Maximum Input Voltage (any input referenced to common, no damage)	± 30 Volts
Input Scan Rate	50 ms
Hardware Accuracy (@ CMV = 0 V)	± 0.075% of full-scale (23.5°± 2°C)
Hardware Accuracy (0 to 60°C)	± 0.15% of full-scale

Applications:
Process Control: Suitable for applications requiring accurate measurement of analog signals in industrial environments.
Data Acquisition: Used in systems that need precise analog input data for monitoring and control.
The 8C-TAIXA1 module provides reliable and precise analog input with features designed to maintain accuracy and performance under various operating conditions.
