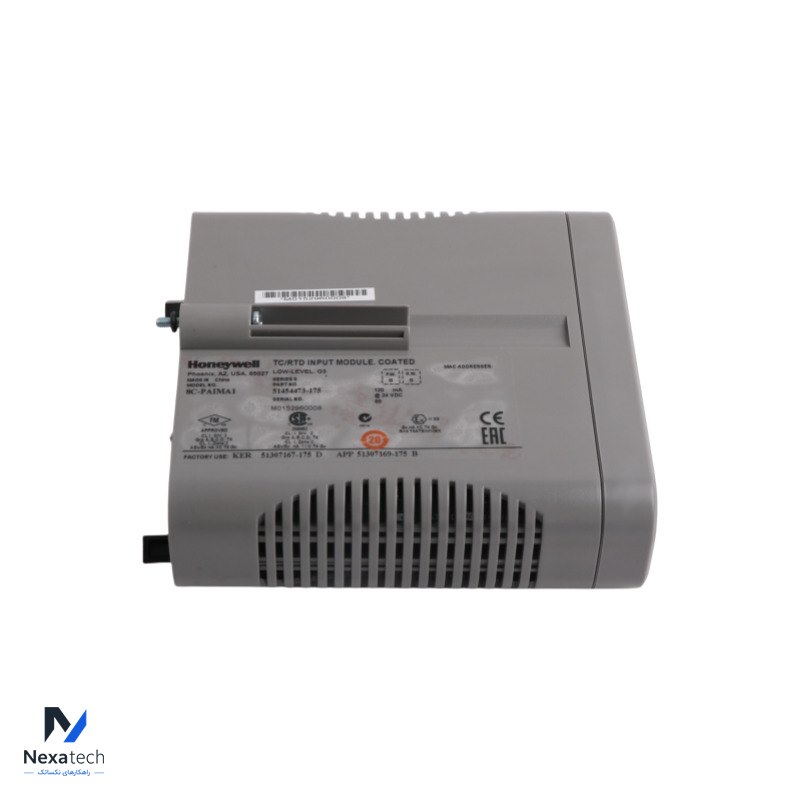

Name: Honeywell 8C-PAIMA1 51454473-175 TC/RTD IOM module
Brand: Honeywell
SKU: 8C-PAIMA1
Availability: InStock

مشخصات فنی

Brand Name:	HOENYWELL
Model Number:	8C-PAIMA1
Alternate Part Number	51454473-175
Condition:	100% Original
Dimensions	46.2x12x5.5cm	Weight	1.18kg
Description	TC/RTD IOM module	Warranty:	12 Months

The Honeywell 8C-PAIMA1 51454473-175 TC/RTD IOM Module is an Input/Output Module designed for use in Honeywell’s process control systems. It supports temperature measurements using both thermocouples (TC) and resistance temperature detectors (RTDs). Here’s a detailed overview of its features and specifications:

Key Features:
Model: 8C-PAIMA1
Part Number: 51454473-175
Type: TC/RTD Input/Output Module (IOM)
Temperature Channels: Supports up to 16 channels of temperature inputs.

Parameter	Specification
Temperature Inputs	Supports up to 16 channels for TC and RTD temperature measurements.
Operation	- Thermocouple (TC) operation
	- Resistance Temperature Detector (RTD) operation
Cold Junction Compensation	Remote cold junction compensation capability to ensure accurate temperature readings.
Scanning Rate	1 second process variable (PV) scanning with Over-Temperature Detection (OTD) protection.
OTD Protection	Configurable Over-Temperature Detection (OTD) protection to safeguard against excessive temperatures.
Configuration	Temperature points can be added in 16-point increments for flexibility in system setup.

Applications:

Temperature Measurement: Ideal for applications requiring accurate temperature measurements from TC and RTD sensors in process control systems.

Process Control Systems: Used in Honeywell’s distributed control systems to integrate temperature data into broader process management and control functions.

The 8C-PAIMA1 TC/RTD IOM Module provides reliable and flexible temperature input capabilities, ensuring accurate data collection and protection against temperature-related issues in industrial processes.
