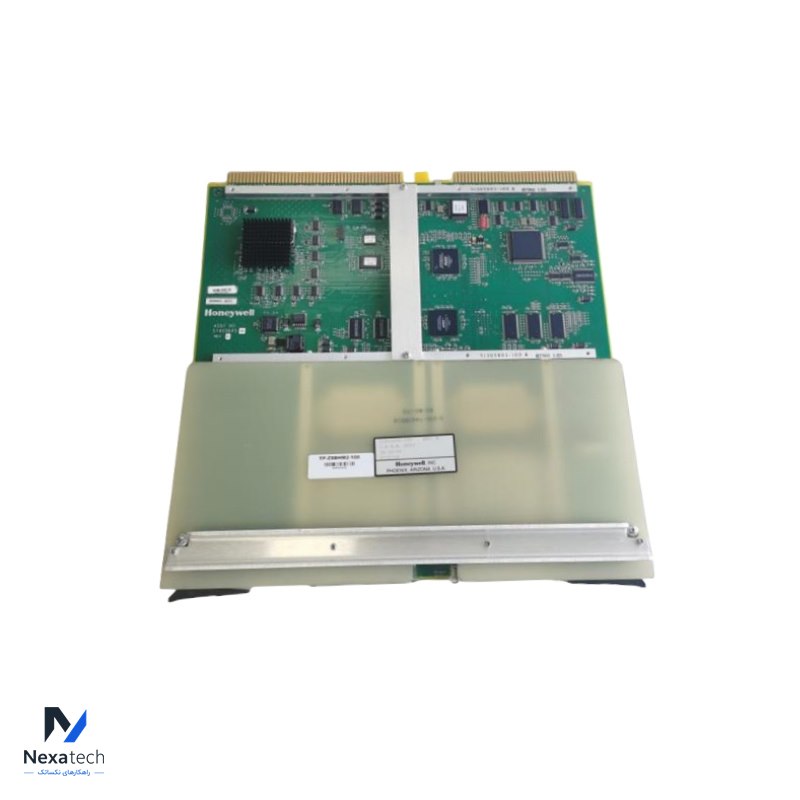

Honeywell 51403645-100 51403698-100 SBHM Board

The Honeywell 51403645-100 and 51403698-100 SBHM (Single Board History Module) are components of the TDC 3000 control system. These modules are designed to handle historical data storage and management within the TDC 3000 system.

Key Features and Specifications:
General Overview:
Part Numbers: 51403645-100, 51403698-100
Module Type: Single Board History Module (SBHM)
System Compatibility: TDC 3000 Distributed Control System (DCS)
Functionality: Manages and stores historical process data for later retrieval and analysis.

Key Features:
Data Storage: Provides storage for historical process data, enabling long-term data archiving and retrieval.
Real-Time Processing: Interfaces with the TDC 3000 system to collect and store data in real-time.
Reliability: Designed for reliable operation in industrial environments, ensuring data integrity and system performance.
Interface: Typically connects with other TDC 3000 components to integrate data collection and storage functions.
Capacity: Supports a significant amount of historical data storage, depending on the configuration and system requirements.
Applications:
Historical Data Management: Used for storing historical data related to process control and automation, enabling analysis and reporting.
Process Monitoring: Helps in tracking and analyzing historical trends and performance of industrial processes.
Regulatory Compliance: Assists in meeting regulatory requirements by maintaining accurate historical records.
Installation:
Mounting: Fits into standard Honeywell control racks or enclosures.
Wiring and Connections: Connects to other TDC 3000 system components via standard interfaces.
