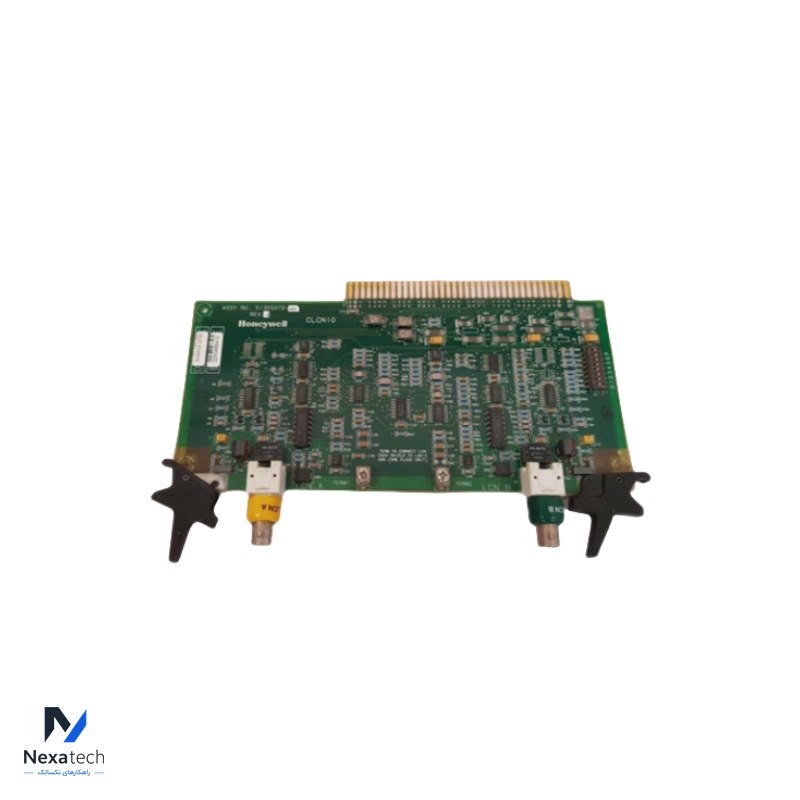

Honeywell 51305072-400 LCN INPUT/OUTPUT BOARD

The Honeywell 51305072-400 is an LCN (Local Control Network) Input/Output Board used in Honeywell’s process control systems. This board is part of the TDC 3000 system and handles various input and output functions crucial for process automation.

Key Features and Specifications:
Part Number: 51305072-400
Module Type: LCN Input/Output Board
System Compatibility: Honeywell TDC 3000 Distributed Control System (DCS)
Input/Output Functionality: Provides both analog and digital I/O capabilities for integrating with field devices and sensors.
Communication: Interfaces with the LCN to facilitate communication between the control system and field devices.
Isolation: Typically includes electrical isolation to protect against interference and ensure reliable operation.
Reliability: Designed for high reliability in industrial environments, ensuring consistent performance.

Input/Output Channels: Varies depending on configuration; typically supports a mix of analog and digital I/O channels.
Signal Types:
Analog Inputs: Measures process variables such as temperature, pressure, and flow.
Analog Outputs: Sends control signals to field devices.
Digital Inputs: Receives discrete signals from switches, relays, or other digital devices.
Digital Outputs: Controls on/off devices such as relays and actuators.
Power Supply: Operates on standard industrial power supplies; specific requirements should be verified in the detailed datasheet.

Applications:
Process Control: Used in process control systems to interface with various field devices and sensors, enabling automation and control.
Data Acquisition: Facilitates the collection of data from analog and digital sources for monitoring and control purposes.
Automation Systems: Integrates with Honeywell’s TDC 3000 system for comprehensive process automation and control.
Installation:
Mounting: Fits into Honeywell control racks or enclosures.
Wiring: Connects to field devices and power sources via terminal blocks or connectors.
