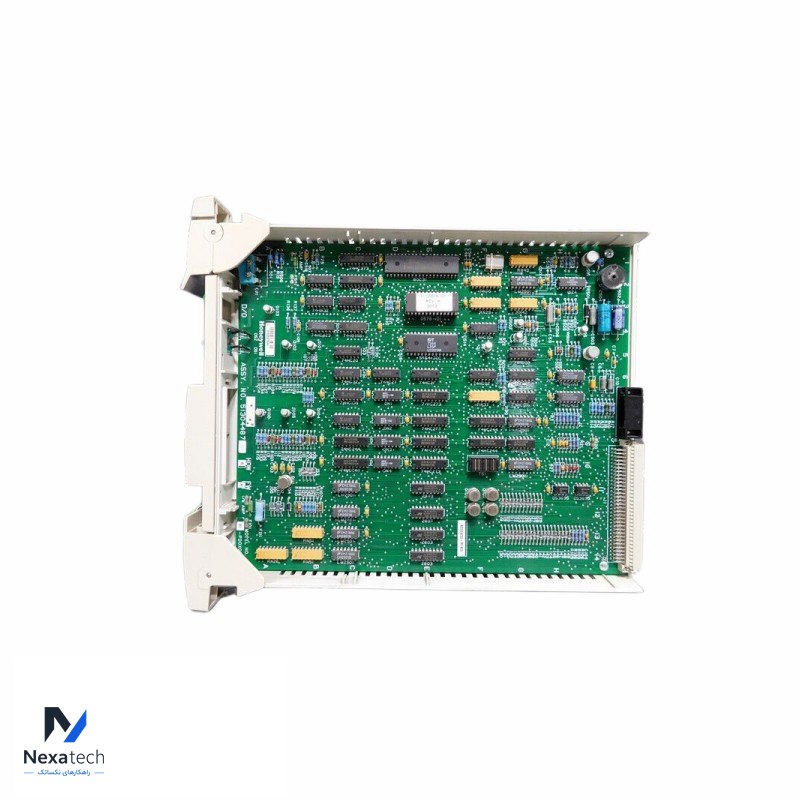

Honeywell 51304487-100 MU-PDOX02 Digital Output 16-Point Processor

The Honeywell 51304487-100 MU-PDOX02 is a Digital Output (DO) Processor module used in Honeywell’s industrial control systems, such as the TDC 3000 and Experion PKS. This module is designed to handle digital output signals that control external devices like actuators, relays, and other binary-controlled equipment.

Key Features and Specifications:
Manufacturer: Honeywell
Product Number: 51304487-100
Model: MU-PDOX02 Digital Output Processor
Output Channels: 16 digital output points, enabling control over 16 individual devices or processes.
Voltage Type: It likely operates at standard industrial DC voltages for digital output control, typically 24 VDC.

Point Control: Each of the 16 output points can be independently controlled, providing flexibility in controlling various devices connected to the module.
Use Case: Commonly used in process automation systems to drive relays, solenoids, and other devices that require ON/OFF control.

Functions:
Binary Control: The module converts digital control signals from the control system into output signals that can drive connected devices.
Processor-Based Operation: The module has an internal processor to handle the communication and control of the digital output points, ensuring real-time operation and reliable switching.
