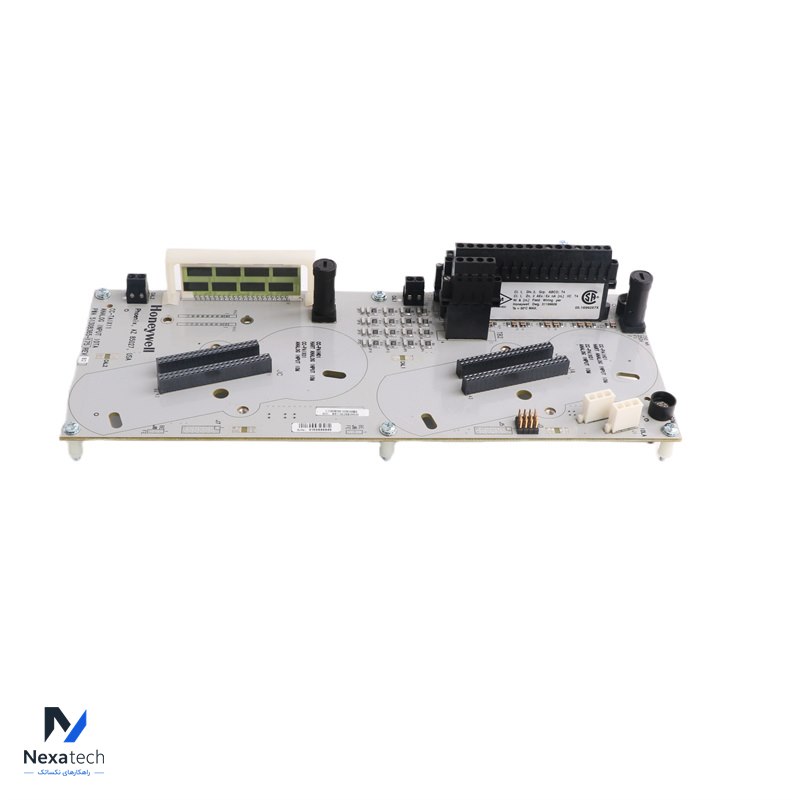

HOENYWELL CC-TAIX11 51308365-175 Analog Input with HART
توضیحات محصول
مشخصات فنی
| Brand Name: | HOENYWELL | ||
| Model Number: | CC-TAIX11 | ||
| Alternate Part Number | 51308365-175 | ||
| Condition: | 100% Original | ||
| Dimensions | 5.1 cm x 15.2 cm x 7.6 cm | Weight | 0.2kg |
| Description | Analog Input with HART | Warranty: | 12 Months |
| | | | |
The Honeywell CC-TAIX11 51308365-175 Analog Input Module with HART is designed for industrial process control applications where accurate measurement and monitoring of analog signals are required. It integrates HART (Highway Addressable Remote Transducer) protocol support for communication with smart field devices.
Key Features and Specifications:
Part Number: 51308365-175
Module Type: Analog Input with HART
Functionality: Accepts high-level current or voltage inputs from transmitters and sensing devices, and supports HART communication for enhanced diagnostics and configuration.
Input Types: Supports both current (typically 4-20 mA) and voltage (e.g., 0-10 V) signals.
HART Protocol: Allows for digital communication with HART-enabled field devices, enabling advanced diagnostics and configuration capabilities.
Input Channels: Generally includes multiple input channels for connecting various sensors and transmitters.
Resolution: Provides high-resolution measurement for accurate data acquisition.
Accuracy: Ensures precise analog input readings with minimal error.
Isolation: Features electrical isolation to protect the control system from signal interference and noise.
Calibration: Includes calibration capabilities to ensure accurate and consistent measurement.
Diagnostics: Supports HART-based diagnostics for monitoring device health and performance.
Features:
Analog Input: Capable of measuring high-level analog signals from various field devices.
HART Communication: Enables digital communication for device configuration and diagnostic information.
Multi-Channel Support: Typically supports multiple channels, allowing for simultaneous monitoring of various inputs.
High Resolution and Accuracy: Ensures precise data acquisition with minimal error.
Field Device Compatibility: Works with HART-enabled transmitters and sensors, facilitating integration with existing systems.
| Specification | Details |
| Input Type | Voltage, current (2-wire or self-powered transmitters) |
| Input Channels | 1 or 16 Channels (12 Single Ended / 4 Differential) |
| Common Mode Rejection Ratio | 70 dB (dc to 60 Hz, 500 source imbalance) |
| Common Mode Voltage | -6 to +5 V peak (dc to 60 Hz) |
| A/D Converter Resolution | 16 bits |
| Input Range | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 °C) |
| Normal Mode Rejection Ratio | 19 dB at 60 Hz |
| Normal Mode Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Maximum Normal Mode Input (differential inputs, no damage) | ±30 Volts |
| Crosstalk | -60 dB (dc to 60 Hz, channel-to-channel) |
| Input Impedance (voltage inputs) | > 10 Mpowered |
| Input Scan Rate | 50 ms |
| Hardware Accuracy (@ CMV = 0 V) | ±0.075% of full-scale (23.5°± 2°C) |
|
| ±0.15% of full-scale (0 to 60°C)) |
