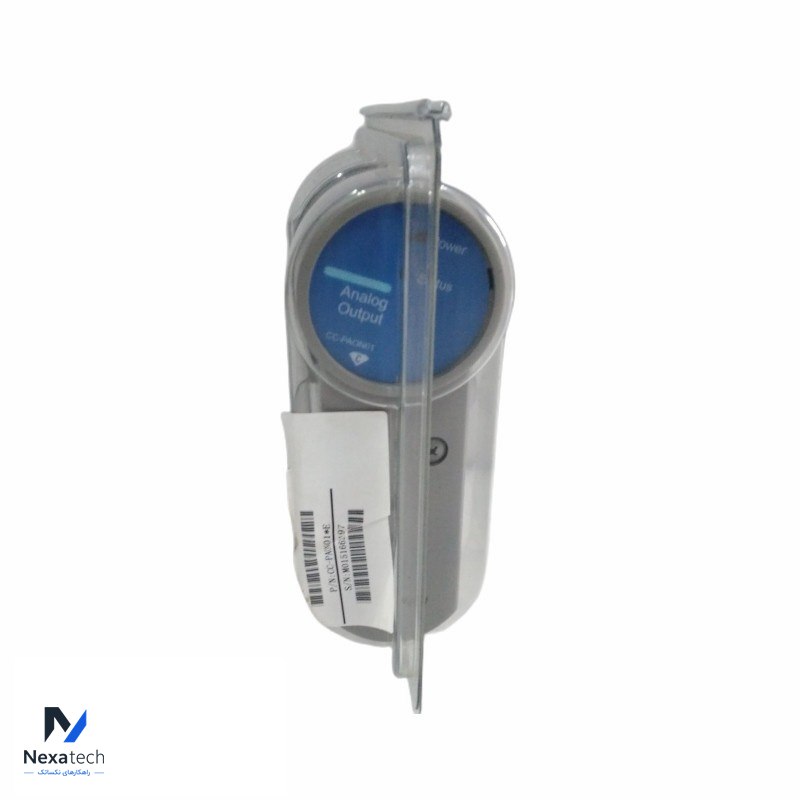

HOENYWELL CC-PAON01 51410070-175 Analog Output Module

HOENYWELL CC-PAON01 51410070-175 Analog Output Module

پارت‌نامبر: CC-PAON01 51410070-175

توضیحات محصول

Analog Output Module

مشخصات فنی

Brand Name:

HOENYWELL

Model Number:

CC-PAON01

Alternate Part Number

51410070-175

Condition:

100% Original

Dimensions

5.1 cm x 15.2 cm x 7.6 cm

Weight

0.2kg

Description

Analog Output Module

Warranty:

12 Months

The Honeywell CC-PAON01 51410070-175 Analog Output Module is part of the Experion Process Knowledge System (PKS) Series C family, designed for industrial process control. This module provides analog output capabilities, interfacing with various actuators and control systems in the field. Key features include:

Features:
Type: Analog Output Module
Output Channels: 8 isolated channels
Signal Range: Configurable for 4-20 mA, 0-20 mA, or 0-10V outputs
Communication Protocol: Works with the C300 controller and integrates within the Experion PKS system
Resolution: High-resolution output for precise control applications
Redundancy: Supports redundancy for high availability in critical systems

Diagnostics: Built-in diagnostic functions for real-time status monitoring and error detection

Isolation: Galvanic isolation for each channel to prevent signal interference
Mounting: Fits in a Series C form factor rack
Applications: Designed for controlling valves, dampers, actuators, or other process control elements
This module helps provide smooth and accurate control in demanding environments, making it suitable for use in chemical, petrochemical, and other process industries.

Specification

Details

Output Type

4-20 mA

Output Channels

16

Output Ripple

< 100 mV peak-to-peak at power line frequency, across 250Ω load

Output Temperature Drift

0.005% of Full Scale/°C

Output Readback Accuracy

±4% of Full Scale

Output Current Linearity

±0.05% of Full Scale nominal

Resolution

±0.05% of Full Scale

Calibrated Accuracy

±0.35% of Full Scale (25°C), including linearity

Directly Settable Output Current Range

0 mA, 2.9 mA to 21.1 mA

Maximum Resistive Load

800 ohms (with 24 V supply = 22 VDC through 28 VDC)

Maximum Output Compliant Voltage

16 V (with 24 V supply = 22 VDC through 28 VDC)
