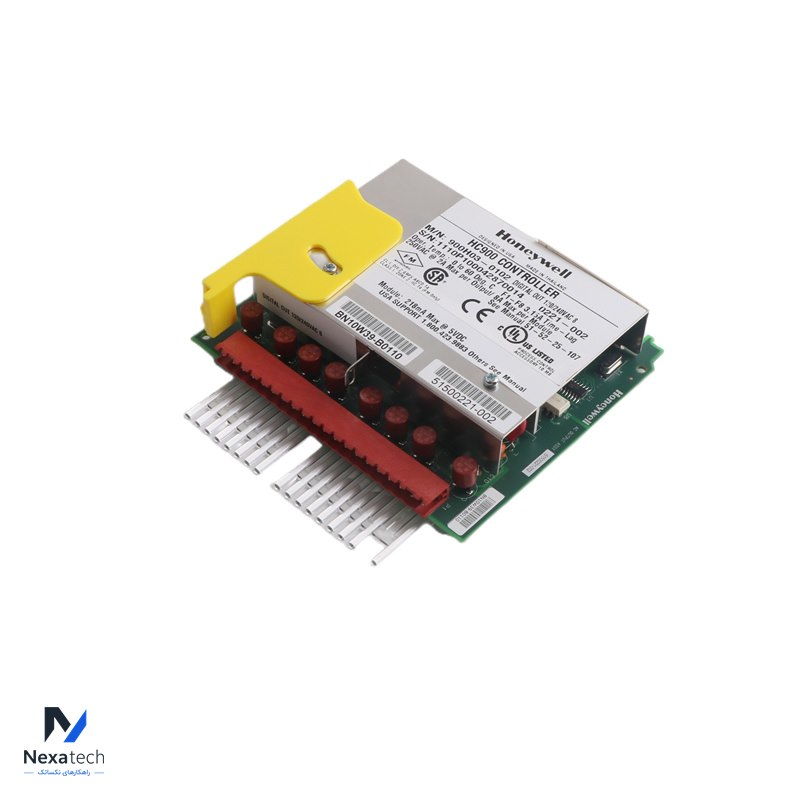

HOENYWELL 900H03-0102 Digital Output – AC Type

The Honeywell 900H03-0102 Digital Output module is designed for applications requiring reliable, isolated digital output signals. Here’s a detailed overview of its features and specifications:

Key Features and Specifications:
Part Number: 900H03-0102
Module Type: Digital Output – AC Type
Output Channels: 8 isolated outputs
Output Type: Zero-crossing Triac solid-state outputs
Voltage Rating: Designed for AC output applications
Transient Protection: Each output includes a Metal Oxide Varistor (MOV) for transient overvoltage protection

Fuse: Includes a field-replaceable fuse for each output to protect against overloads and short circuits
Shorting Comb: Available for use with barrier-type terminal blocks, simplifying connections to a common voltage source for all outputs
Isolation: Outputs are electrically isolated to prevent interference and ensure reliable operation in noisy environments

Features:
Triac Output: Utilizes Triac technology for solid-state switching, providing reliable operation with minimal wear and maintenance compared to mechanical relays
Isolated Outputs: Ensures that the control signals are isolated from the output circuits, protecting the control system from high voltages or transients in the field
MOV Protection: Protects against voltage spikes and transients, enhancing the module’s durability and reliability
Field-Replaceable Fuse: Allows for easy replacement of fuses without needing to remove the module from the system, facilitating quick maintenance

Applications:
Industrial Automation: Suitable for controlling AC loads in industrial automation systems, such as motors, solenoids, and other devices
Process Control: Used in process control environments where AC output signals are needed for operational control
Remote Control: Ideal for applications where remote switching of AC devices is required
Installation:
Mounting: Fits into standard Honeywell control racks or enclosures
Wiring: Connects via barrier-type terminal blocks, with a shorting comb provided for common voltage connections
