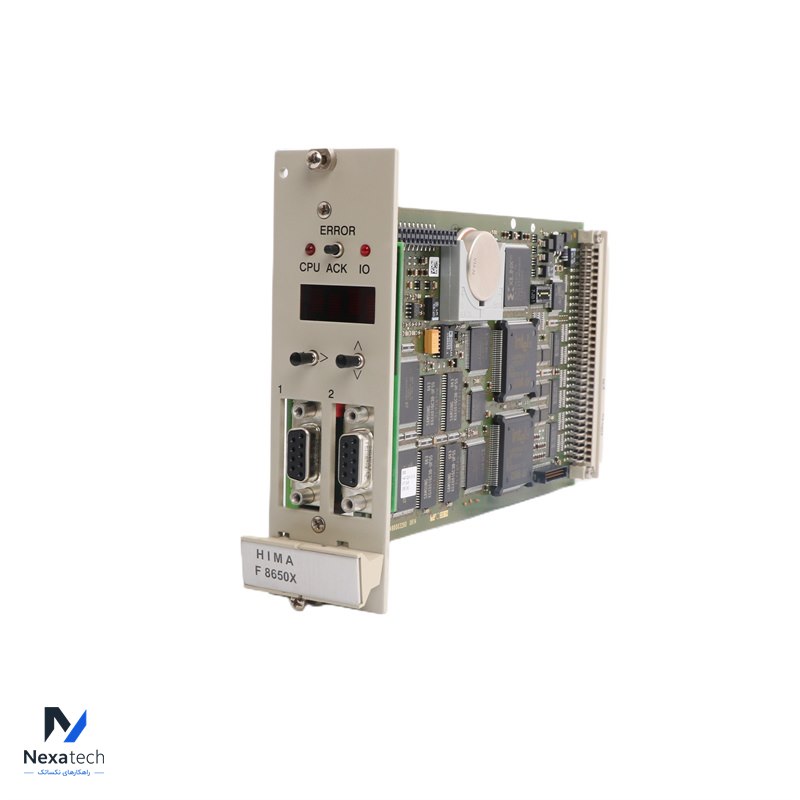

Name: HIMA F8650X Central module
Brand: HIMA
SKU: F8650X
Availability: InStock

مشخصات فنی

Specification
Brand Name	HIMA
Model Number	F8650X
Alternate Part Number	F8650X
Condition	100% Original
Dimensions	28 x 12 x 4.5cm
Description	Central module
Weight	1.5KG
Warranty	12 Months

The HIMA F8650X Central Module is a critical component in safety-critical automation systems. It acts as the central processing unit, managing and coordinating various safety functions and signals within the system.

Central Module Specifications:

1.Microprocessors: Dual clock-synchronized INTEL 386EX processors, 32-bit architecture, operating at a clock frequency of 25 MHz.

2.Memory:

Operating System: 1 MB Flash-EPROM per microprocessor

User Program: 1 MB Flash-EPROM per microprocessor (Note: Utilization may vary based on the operating system version)

Data Storage: 1 MB SRAM per microprocessor

3.Interfaces: Two RS-485 serial interfaces with electrical isolation.

4.Diagnostic Display: Four-digit matrix display with selectable information.

5.Fault Shutdown: Safety-related watchdog with a 24 V output, capable of handling loads up to 500 mA and is short-circuit proof.

6.Construction: Comprised of two European standard PCBs and one additional PCB dedicated to the diagnostic display.

7.Space Requirement: 8 SU (Standard Units)

8.Operating Data: Requires 5 V and 2 A.
