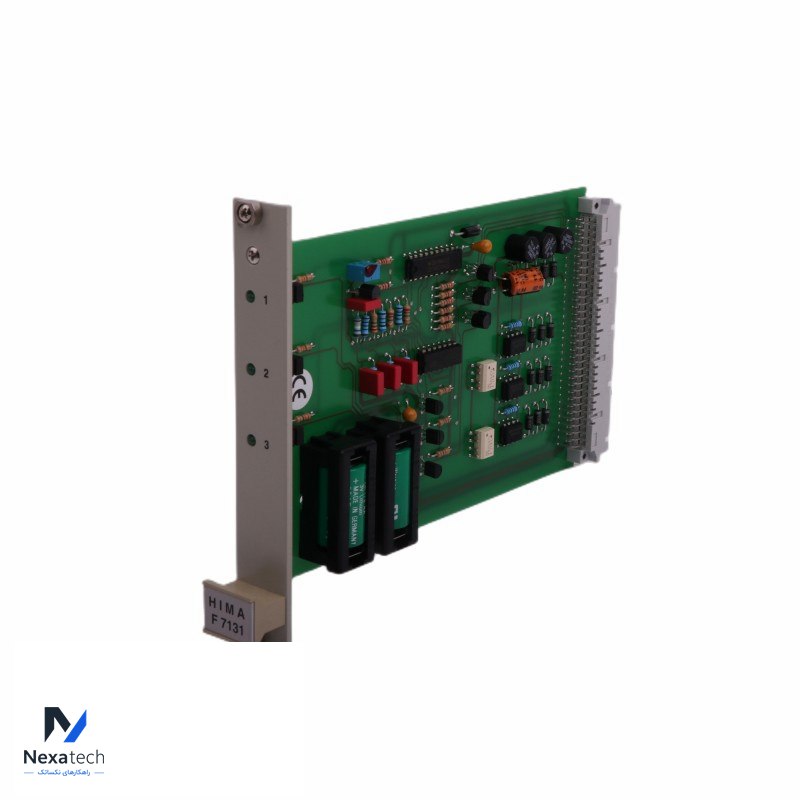

HIMA F7131 Power Supply Monitoring

The HIMA F7131 Power Supply Monitoring module is designed to monitor the system voltage and ensure reliable operation within the PES H51q safety system. Here’s a detailed look at its features and specifications:

Key Features:
Power Supply Monitoring:
Function: Monitors the 5 V system voltage generated by up to three power supplies.
Buffer Batteries: Equipped with buffer batteries to ensure continuous operation and monitoring during power interruptions.

Indicators:
LED Displays: Features three LED displays on the front panel to provide visual indicators of the system's status and health.

Diagnostic and Testing:
Test Bits: Includes three test bits for diagnostic purposes, which can be used with central modules F 8650 or F 8651. These are used to display diagnostic information and to integrate with user programs.
Diagnostic Display: Helps in troubleshooting and ensuring proper operation of the power supplies.

Technical Specifications:
Compatibility: Designed specifically for use with the PES H51q safety system.
Voltage Monitoring: Monitors the 5 V output from up to three power supplies.
Output Monitoring: Allows monitoring of additional power supply modules via 24 V outputs.

Applications:
Safety Systems: Essential for ensuring reliable operation in safety-critical applications by providing real-time monitoring of power supply status.
Diagnostic Tool: Useful for maintaining and troubleshooting safety systems, ensuring that power supply issues are detected and addressed promptly.
