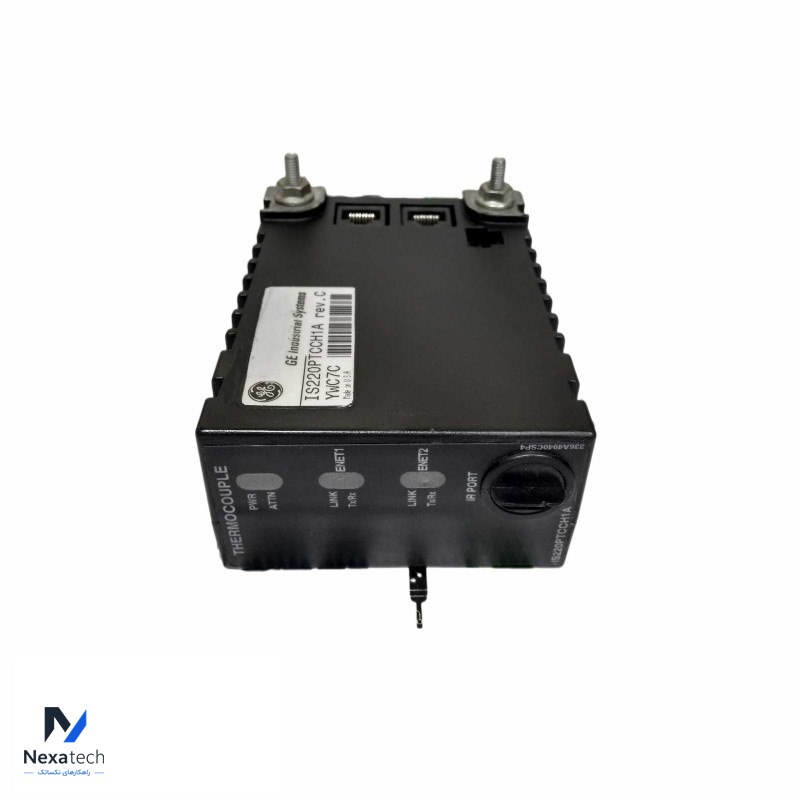

GE Mark VIe IS220PTCCH1A Thermocouple Input Module

The GE Mark VIe IS220PTCCH1A is a Thermocouple Input Module used in the Mark VIe control system for gas and steam turbines. It is designed to process temperature inputs from thermocouples, converting them into digital signals for monitoring and control applications.

Key Features and Specifications:

Input Channels:
The IS220PTCCH1A module supports 12 thermocouple input channels.
Each channel can interface with various types of thermocouples, including types E, J, K, T, N, S, R, and B.
It measures temperatures across a wide range, providing flexibility for different applications.

Accuracy and Resolution:
The module offers high temperature measurement accuracy, ensuring precise control and monitoring in turbine and industrial applications.
Resolution: The module provides 16-bit resolution for temperature data, ensuring fine detail in measurements.

Cold Junction Compensation (CJC):
The module includes Cold Junction Compensation to account for variations in temperature at the termination points of the thermocouples. This feature ensures that temperature readings are corrected and accurate regardless of ambient conditions.

Diagnostic Capabilities:
Advanced self-diagnostics are included to monitor the health and performance of each input channel, detecting issues like open circuits or short circuits in thermocouple wiring.
Error reporting is provided via the Mark VIe system’s diagnostic tools.

Environmental Specifications:
The module is built for rugged industrial environments, ensuring reliable performance under harsh conditions.
Operating temperature: -30°C to +65°C.
Humidity: 5% to 95% non-condensing.
