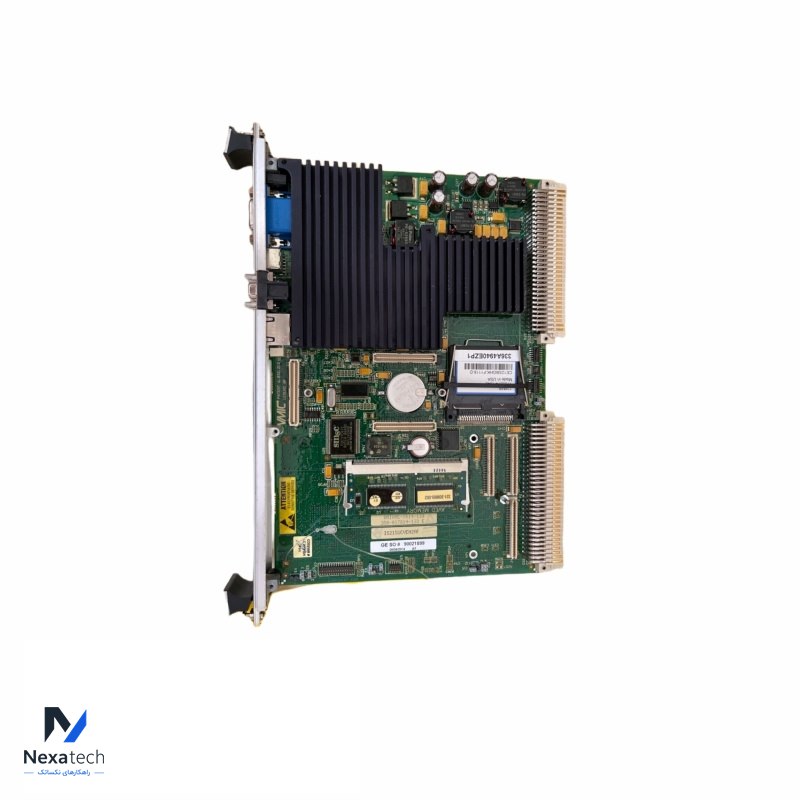

GE Mark VI IS215UCVEH2AF Vme Controller Board

IS215UCVEH2AF is a VME board developed by GE. It is a part of Mark VI control system. This single-slot VME (Versa Module Eurocard) board plays a crucial role in the control system's operations. The system features an Intel Celeron microprocessor running at 300 MHz and is accompanied by 32 MB of DRAM memory. It offers flexibility with the choice between a 16 MB or 128 MB Compact Flash Module. Additionally, the system includes a 128 KB L2 cache, enhancing data access speeds. To support controller functions, an 8K battery-backed SRAM is allocated, serving as NVRAM within the system architecture.

SPECIFICATIONS:
Part No.: IS215UCVEH2AF
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Number of Channels: 6
Temperature: -30 to 65oC
Size: 8.6 cm Wide X 16.2 cm High
Product Type: VME Board
Availability: In Stock
Series: Mark VI

Primary Ethernet Interface (Ethernet 1)
The primary Ethernet interface (Ethernet 1) on this system boasts the following specifications:
Connection Type: Utilizes twisted pair 10BaseT/100BaseTX technology with an RJ-45 connector, enabling versatile connectivity options.
Communication Protocols: TCP/IP Protocol: Primarily employed for communication between the controller and the toolbox, ensuring seamless data exchange within the system.
EGD Protocol: Specifically designed for communication purposes with CIMPLICITY HMI (Human-Machine Interface) and Series 90-70 PLCs (Programmable Logic Controllers), facilitating efficient and reliable data transmission.
Ethernet Modbus Protocol: Supports communication between the controller and third-party DCS (Distributed Control Systems), offering compatibility and integration capabilities across different systems.
