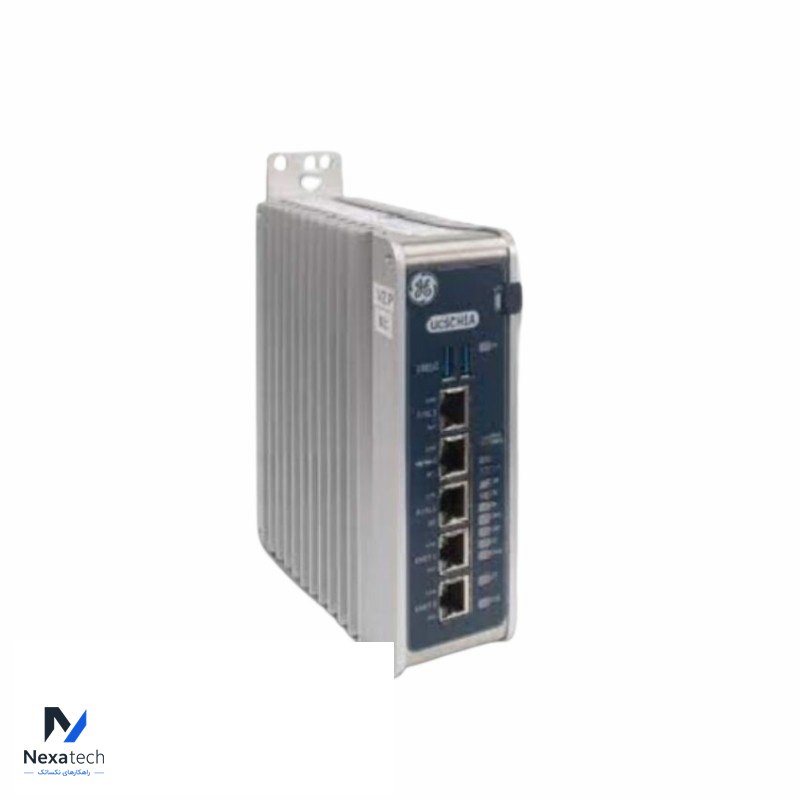

Name: GE IS420UCSCH1A-H-V0.1-A UCSC Controller
Brand: General Electric
SKU: IS420UCSCH1A-H-V0.1-A
Availability: InStock

Specification
Brand Name	GE	CPU Frequency: 1.2 GHz CPU Cores: 4 Mark VIe Cores: 2 Ethernet Ports Total: 6 Max Power Consumption: 31 W Minimum Voltage: 18 V Memory Size: 4 GB Flash Storage: 40 GB SSD pSLC Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Altitude: 1000 m Nominal



Model Number	IS420UCSCH1A-H-V0.1-A
Alternate Part Number	IS420UCSCH1A-H-V0.1-A
Condition	100% Original
Dimensions	5.5x15.3x20.3cm
Description	UCSC Controller
Weight	1.52 kg
Warranty	12 Months

Product Description:

The GE IS420UCSCH1A-H-V0.1-A is a UCSC Controller.As a turbine or balance of plant (BoP) controller, it runs the Mark VIe firmware and blockware applications and utilizes Mark VIe IONet interfaces. IONet is a private special-purpose Ethernet that only supports Mark controls I/O packs and controllers. IEEE 1588 protocol is used through the IONet interfaces to synchronize the clock of the I/O modules and controllers to within ±100 microseconds. External data is transferred to and from the IO Packs the controller over the IONet Ethernet interfaces. This includes process inputs/outputs to the I/O modules. Unlike traditional controllers where I/O is on a backplane, the UCSE controller does not host any application I/O. In a redundant set, all I/O networks are attached to each controller, providing them with all input data.

Frequently Asked Questions (FAQ):
1.How many CPU cores does the GE IS420UCSCH1A-H-V0.1-A have?

The GE IS420UCSCH1A-H-V0.1-A is equipped with 4 CPU cores.

2.What is the CPU frequency of the GE IS420UCSCH1A-H-V0.1-A?
The GE IS420UCSCH1A-H-V0.1-A operates at a CPU frequency of 1.2 GHz.

3.How many Ethernet ports does the GE IS420UCSCH1A-H-V0.1-A have?
The GE IS420UCSCH1A-H-V0.1-A provides a total of 6 Ethernet ports.

4.What is the flash storage of the GE IS420UCSCH1A-H-V0.1-A?

The GE IS420UCSCH1A-H-V0.1-A includes 40 GB SSD pSLC flash storage.

5.How is time synchronization handled in the GE IS420UCSCH1A-H-V0.1-A?

The GE IS420UCSCH1A-H-V0.1-A uses IEEE 1588 protocol to synchronize devices within ±100 microseconds.

Application:

Thermal power generation: Central control and digital electro-hydraulic regulation systems for gas turbines and steam turbines.
Hydroelectric power generation: Speed control systems for hydro turbines in hydropower stations.
Petroleum and natural gas: Long-distance pipelines, large-power process compressors in chemical plants.
New energy power generation: Main controllers for wind turbine generators.
Heavy-duty ship and marine engineering: Ship power propulsion systems for LNG vessels or offshore drilling platforms.
