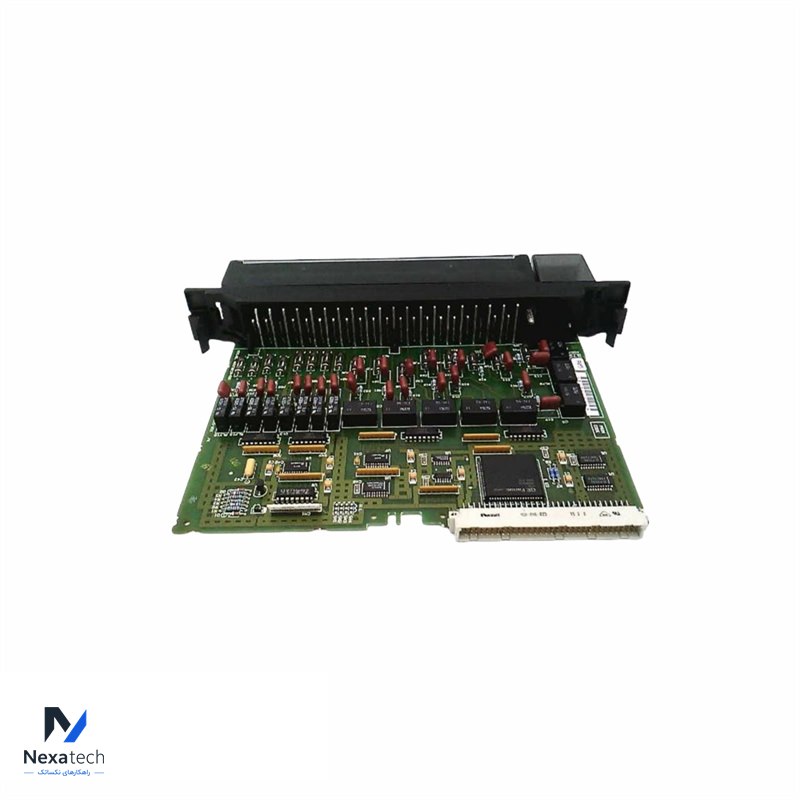

GE IC697MDL940 Relay Output module

Description:
16 points - 8 isolated Form C
2 groups of 4 Form A
2 amp per point switching capacity
RC snubber and fuse protection per point
No user power required
Removable field wiring terminal

The GE IC697MDL940 is a 24/48 VDC relay output module from the GE Fanuc 90-70 PLC series. It features 16 independent relay output channels, suitable for controlling high-power inductive and resistive loads. Each output can handle up to 10A of current and supports multiple protection mechanisms, such as short-circuit and overload protection. This module is designed for industrial automation environments, ensuring high system reliability and flexibility, making it ideal for equipment control applications in manufacturing, energy, and infrastructure sectors.

Functions:
The 16 point Relay Output Module is versatile,rugged, and easy to use. It will switch a variety of low to medium power loads such as relays, contactors, and lamps.
The resistive rating of the module is 2 amps per point at 120/240 VAC or 24 VDC and 0.2 amps per point for 125 VDC. Power to energize the relay coils is supplied by the module and each output is individually fused and suppressed with an RC snubber.LED indicators which display the ON - OFF status of each point on the logic (PLC) side of the circuit are
located at the top of the module. Field wiring is made to a removable terminal board
and the module is mechanically keyed to ensure correct replacement with a similar module type in the field. I/O references are user configurable without the use of jumpers or DIP switches on the module.

Frequently asked questions about the GE IC697MDL940 model:
1.What is the output type of the IC697MDL940?
The IC697MDL940 is a 24/48 VDC relay output module with 16 independent relay output channels, supporting control of inductive and resistive loads.

2.What is the current handling capacity of the IC697MDL940?
Each output channel can handle up to 10 amps of current, making it suitable for high-power applications.

3.What protection features does the IC697MDL940 support?
The module features short-circuit and overload protection, enhancing the safety and reliability of the equipment.
