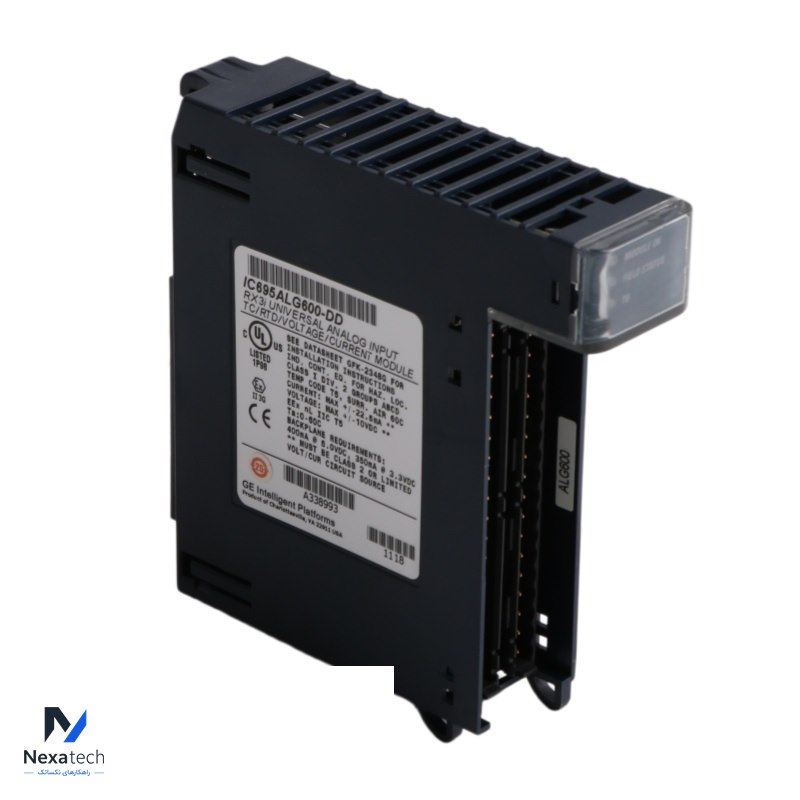

GE IC695ALG600-DD Analog Input Module

Name: GE IC695ALG600-DD Analog Input Module
Brand: General Electric
SKU: IC695ALG600-DD
Availability: InStock

پارت‌نامبر: IC695ALG600-DD

توضیحات محصول

Analog Input Module

Specification
Brand Name	GE	Backplane Power Requirements: 300 mA maximum at 5.0V, 320 mA maximum at 3.3V Power Dissipation within Module: Thermal dissipation 5.4 watts maximum Maximum RTD Cable Impedance: 25 ohm RTD Wire Length: 1000 ft maximum with settling time of 1 mSec Input Impedance: Greater than 1M ohm for TC, voltage, and RTD inputs Current Input Resistance: 249 ohm ±1% Maximum Overvoltage: ±14.5 VDC continuous Maximum Overcurrent: 28 mA continuous Settling Time: Less than 80 mS to 5% of full scale Gain Drift with Temperature: 50 ppm/°C typical



Model Number	IC695ALG600-DD
Alternate Part Number	IC695ALG600-DD
Condition	100% Original
Dimensions	3.5x13.5x13.6cm
Description	Analog Input Module
Weight	0.18 kg
Warranty	12 Months
