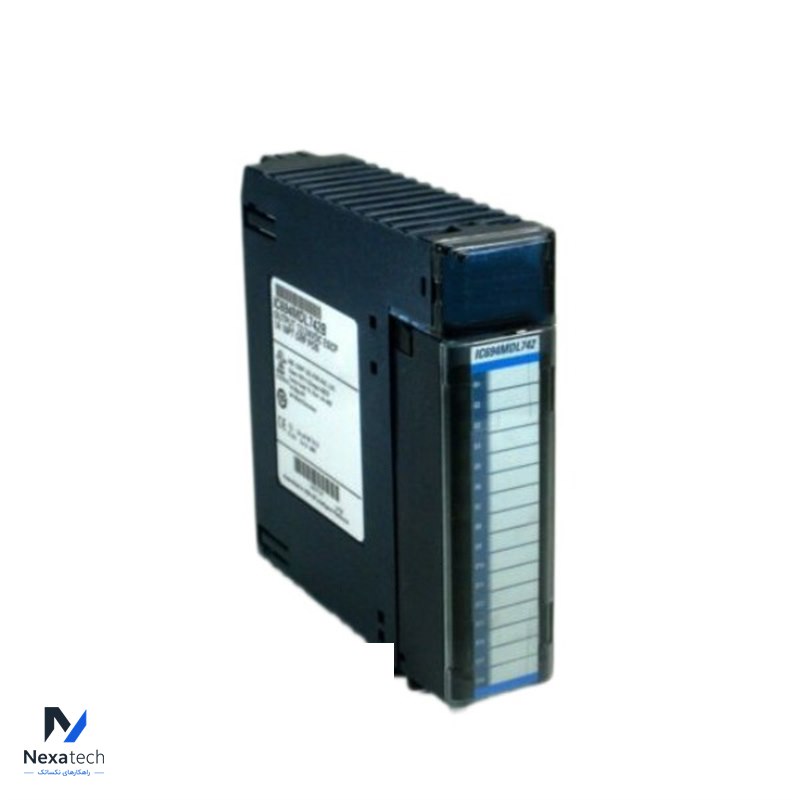

GE IC694MDL742 16-point output module

The GE IC694MDL742 is a 16-point output module designed for reliable and efficient control in automation systems. It provides discrete output channels for controlling various devices, ensuring optimal performance and integration within the GE Fanuc PLC architecture.
The GE Fanuc Automation IC694MDL742 output module with an ESCP per group has 16 output points arranged in 2 groups of 8 and short-circuit protection for the 2 groups of output points.

Specifications:
Brand：GE Fanuc
Series：RX3i PacSystem
Part Number：IC694MDL742
Type：Output module
Rated Voltage：12/24V DC
Outputs per Module ：16 (2 groups of 8 outputs each)
Isolation：250V AC continuous;
Output Current：1 Amp maximum per point
Power Consumption :130 mA (all outputs on
Inrush Current:5.2 Amps for 10 ms
Electronic Short-Circuit Protection (ESCP): Yes
LEDs:Yes
Hot Insertion and Removal:Yes

Here are some common questions and answers regarding the GE IC694MDL742 model:
1.What is the basic function of the module?
The IC694MDL742 is a 16-point relay output module that can control various devices such as motors, lights, and other electrical loads.

2.What is the operating voltage range?
This module typically supports a 24V DC operating voltage, but please refer to the product manual for specific parameters.

3.What is the maximum output current?
Each output point usually has a maximum current of 2A, with an overall limit on the total current for all outputs.
