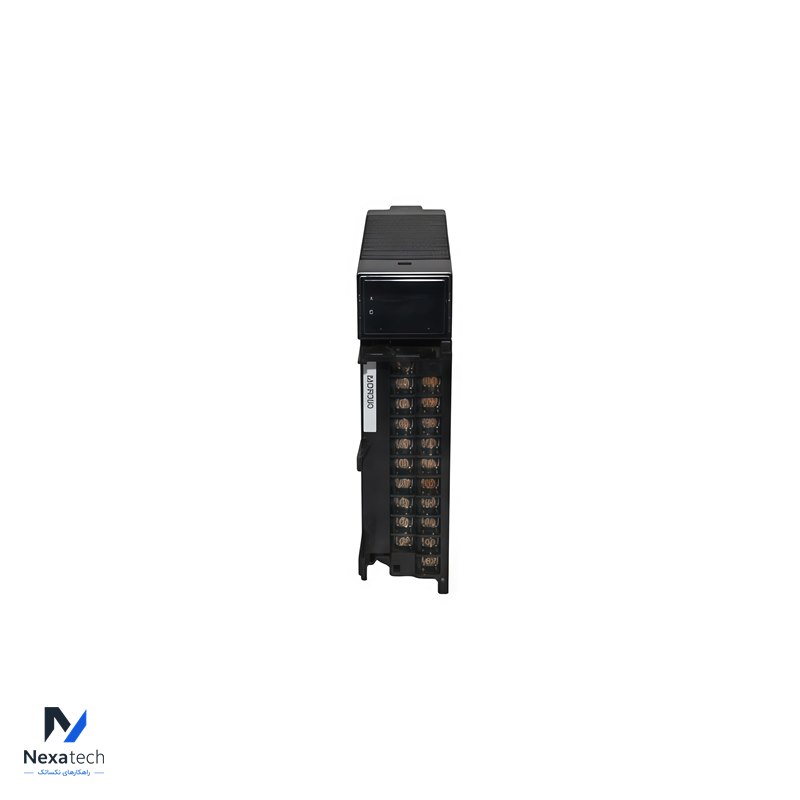

GE IC693MDR390 DC Input/Output Relay module

Specification

Brand Name

GE

Inputs Rated Voltage: 24 volts DC
Input Voltage Range: –30 to +32 volts DC
Inputs per Module: 8
Isolation: 1500 volts RMS between field and logic side
Input Current: 7.5 mA at rated voltage
Input Characteristics (On-State Voltage): 15 to 32 volts DC
Outputs Rated Voltage: 24 VDC, 120/240 VAC
Maximum Load: 2 amps maximum per output
Minimum Load: 10 mA
Maximum Inrush: 5 amps
On Response Time: 15 ms maximum
Internal Power Consumption: 80 mA (all I/O on) from +5V backplane bus

Model Number

IC693MDR390

Alternate Part Number

IC693MDR390

Condition

100% Original

Dimensions

3.5x13x13.5cm

Description

DC Input/Output Relay module

Weight

0.28kg

Warranty

12 Months
