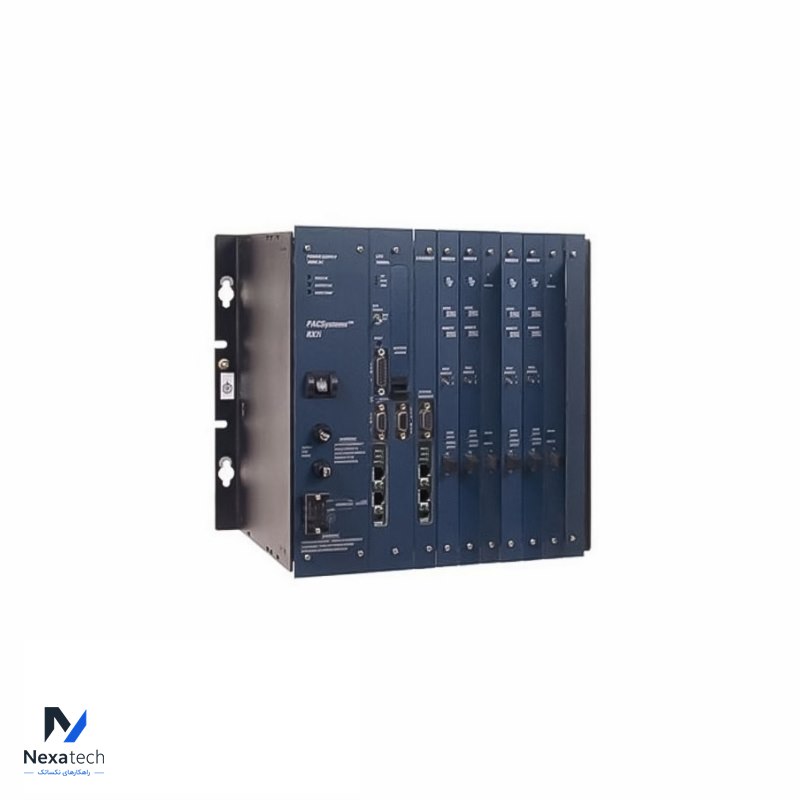

GE FANUC IC698CHS117 17-Slot Wall (Panel) Mount Rack

Specifications:
Brand:GE Fanuc
Series:Rx7i PACsystem
Part Number:IC698CHS117
Description:PACSystems RX7i I/O Rack
Application:Rx7i System
Operating Voltage:5 to 12 Volts DC
Power Supply:350 Watts
Current Rating:60 Amps at 5.0 Volts DC/12 Amps at 12 Volts DC
I/O Capacity:18 I/O Slots
Fan Assembly:Optional
Approximate Dimensions:11.2 x 19.0 x 7.5 inches (H x W x D)
Mounting :Rear Wall Mounting

The GE Fanuc IC698CHS117 Rx7i I/O Rack for the Rx7i PACSystem. This 18-slot I/O rack is software configurable, and it supports VME64 backplane system for all the Rx7i CPUs and I/O configurations, the Series 90-70 I/Os, and the VME modules.

The GE Fanuc IC698CHS117 RX7i I/O Rack is made for the Rx7i PACsystem series. The IC698CHS117 Rack is a wall-mounted 18-slot I/O rack built for the VME64 backplane system and high-level power supply. This I/O rack has up to 4 times more bandwidth strength than the standard VME backplane systems and thus it provides faster I/O throughput. The IC698CHS117 Rack supports the GE Fanuc Rx7i CPUs, Rx7i I/O modules, Series 90-70 I/Os, and all the standard VME modules. It has a slot-sensing feature for rack-type I/O modules and it is configured with programming/configuration software, eliminating DIP switches and jumper configurations. All the Rx7i racks have an open-type design and they must use the IP 54 standard enclosures or enclosures with higher ratings for safe use in an industrial environment.

Common Questions (FAQs) About GE FANUC IC698CHS117:
1.Compatibility
Q: Which control modules are compatible with this rack?
A: The IC698CHS117 is compatible with various GE FANUC control modules; please refer to the product manual for details.

2.Cooling Performance
Q: How does its cooling design ensure stable operation of the system?
A: The rack features an effective cooling design that ensures modules can operate normally under high loads.

3.Installation Requirements
Q: What space and support conditions should be considered during installation?
A: Ensure adequate space for airflow and install according to the specifications provided in the installation manual.
