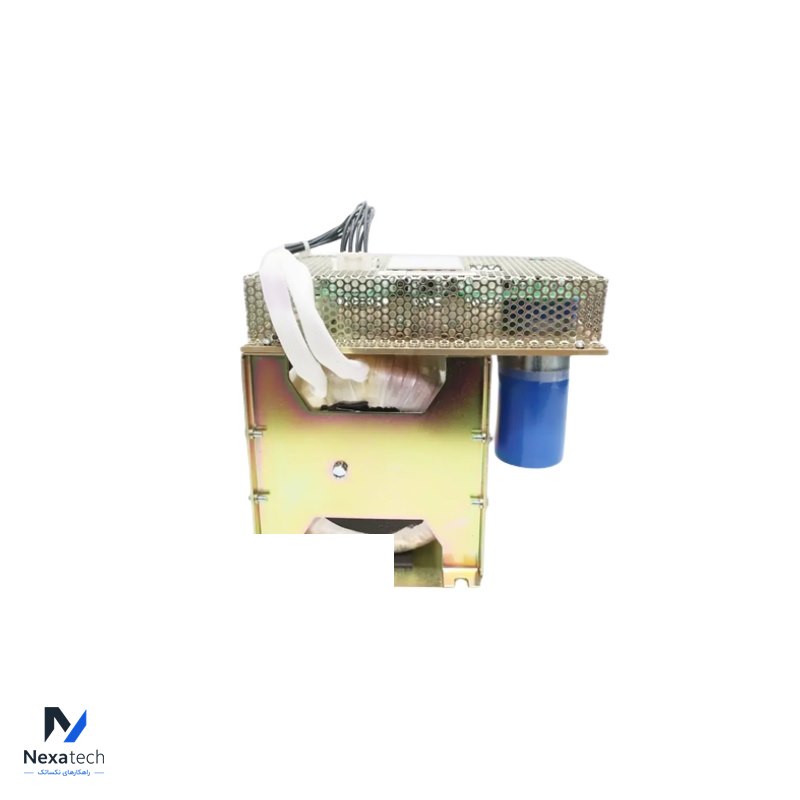

GE DS2020DACAG2 AC/DC Power Conversion Module

Description:

DS2020DACAG2
DISCONTINUED BY MANUFACTURER
TRANSFORMER ASSEMBLY
PLC MODULE
GE DRIVE SYSTEMS
MARK 5
CONVERTER
AC TO DC
FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED

Category:Transformers
Subcategory:Servo Power Transformer
Weight:48.39 lbs

General Electric Speedtronic Mark V DS2020DACAG2 is a Power Conversion Module that is a part of the Speedtronic legacy series. The part number DS2020DACAG2 is also known as a transformer assembly. This DACA is capable of converting VAC power to VDC power. Whether or not a battery backup is employed, this module can be used with the primary power source. It can also assist the control system when it loses power by providing it with some additional local energy storage, allowing it to ride through longer. This module does not have the ability to run diagnostics on its own. It can't even keep track of its input and output levels.

Those functions will be handled by a separate device within the power distribution system. The DACA should only be used in particular areas where corrosive and combustible materials are not present. It should also only be used between the temperatures of -30 and +65 degrees Celsius, with a non-condensing humidity of 5-95 percent.

The DS2020DACAG2 can be floor mounted in the drive cabinet with the help of special brackets and bolts. The DACA has four brackets, and using bolts to assist install it to the floor will guarantee that it is securely mounted.
