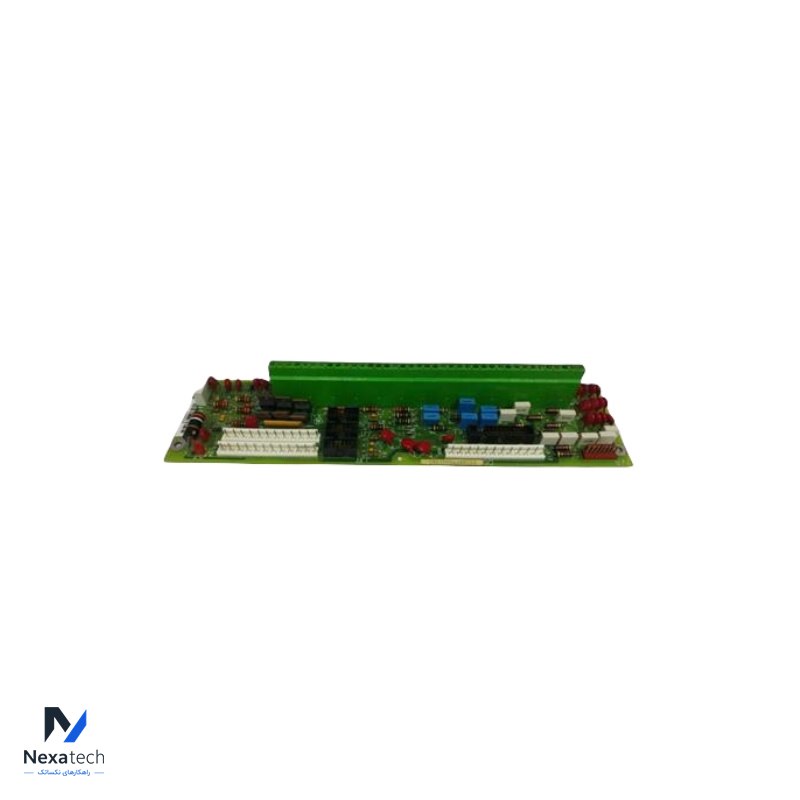

GE DS200TBPAG1ACC Analog Input Terminal Board

This board provides an interface for analog signal inputs from various sensors and devices to the control system. It is essential for capturing critical operational data, such as temperature, pressure, and flow, and converting these signals for monitoring and control purposes.

Specifications:
Model: DS200TBPAG1ACC
Series: Mark V, EX2000
Type: Analog Input Terminal Board
Analog Input Channels: Supports multiple analog input channels (differential and single-ended)
Signal Types: Accepts 4-20 mA, 0-5V, 0-10V, and other standard analog signal ranges
Connectors: Screw terminals for wiring analog inputs
Mounting: Rack-mounted
Diagnostics: No onboard diagnostics (passive board)
Temperature Range: 0°C to 60°C (operational)
Power Supply: Powered through the control system backplane

Features:
Supports multiple analog inputs for real-time data collection
Flexible signal compatibility (current and voltage-based inputs)
Screw terminal connections for secure and easy wiring
Seamless integration with GE Mark V and EX2000 control systems
Durable design for industrial environments

Applications:

The DS200TBPAG1ACC is used in power generation and industrial automation systems, specifically within GE’s Mark V and EX2000 control platforms. It collects analog signals from field devices like temperature sensors, pressure transducers, and flow meters, converting this data for use in monitoring and controlling critical processes. This ensures accurate, real-time feedback for process optimization and safety.
