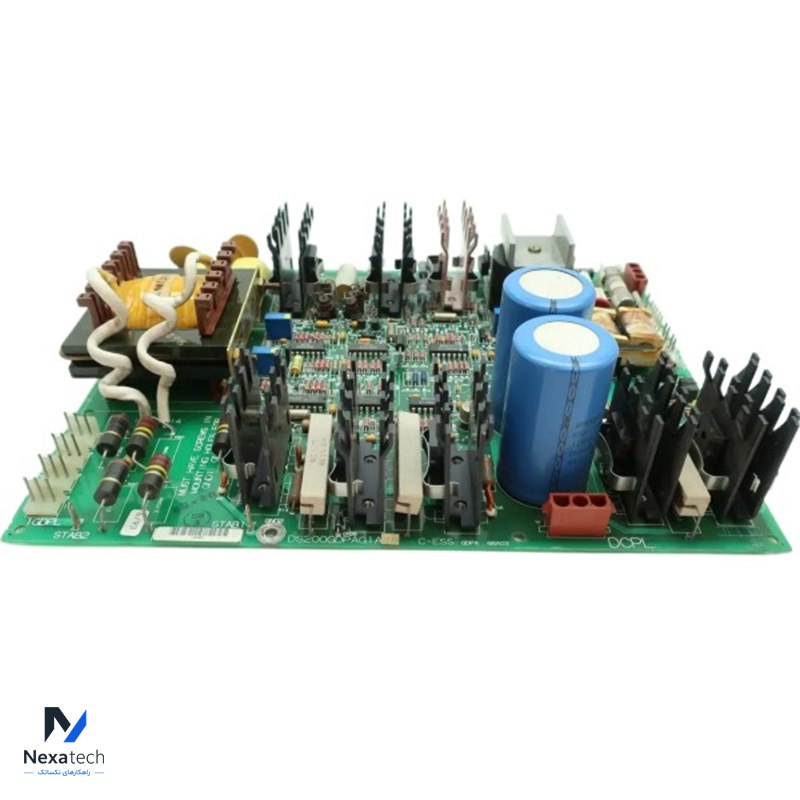

GE DS200GDPAG1AEB POWER SUPPLY BOARD

The GE DS200GDPAG1AEB Power Supply Board is a critical component in GE Digital Energy's Series 200 generator control systems. It provides the necessary electrical power to operate the various electronic modules and components within the control system.

General Electric’s DS200GDPAG1AEB is a high frequency power supply board designed for the Mark V series of optional and replacement boards. Both AC and DC power supplies can be sourced by this 600 to 700 W board. A wide array of GE brand drives and exciters can use this card, expanding the overall capabilities of the drive. Sourced DC power to the board should rate between 105 and 140 VDC. AC power inputted to the installed drive can rate no lower than 80 and no higher than 132 VAC.

Onboard features of this card ensure that the best user experience is provided. Circuitries on DS200GDPAG1AEB include a control signal level circuit and a protective circuit. Power supplies and voltages are regulated through use of the 120 VDC power supply, a control power supply, and a 50 VAC output transformer. Other main features on this device include a 27 kHz inverter, a regulator, and an input rectifier and filter. Voltage interruptions or irregularities will not disrupt the board as all inputs are isolated. Board status diagnostics are provided to users using the two neon indicators and four LED indicators found on the card.
