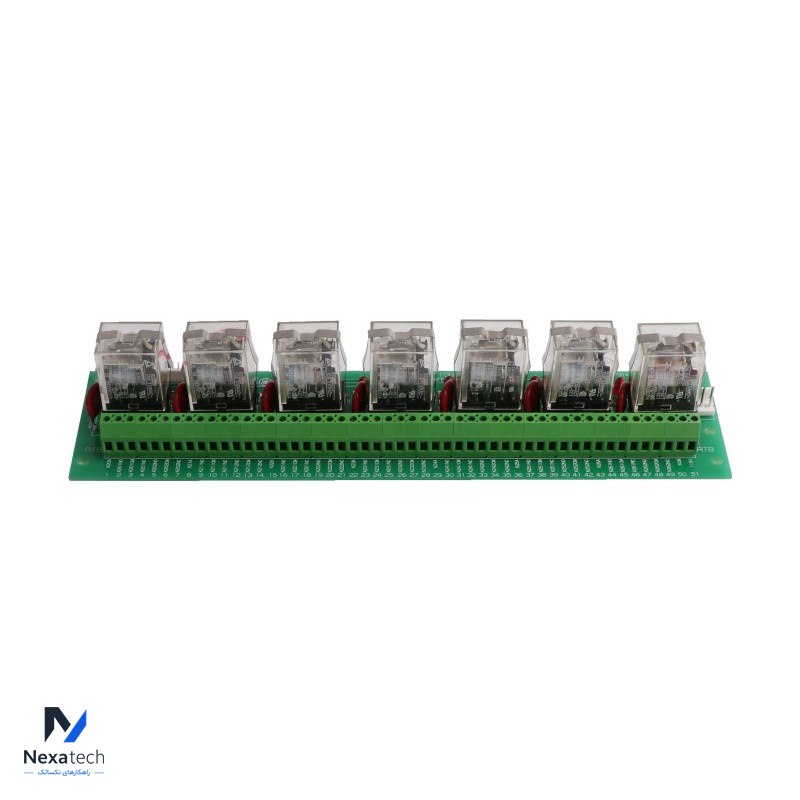

GE 531X191RTBAJG1 Relay Terminal Card

The GE 531X191RTBAJG1 Relay Terminal Card is a high-quality interface module designed for use in industrial control systems. This card provides reliable relay connections, facilitating the integration of various input and output devices. With its robust design and user-friendly layout, it ensures efficient signal management and enhances the overall performance of automation systems. Its versatility makes it suitable for a wide range of applications in manufacturing and process control environments.

SPECIFICATIONS：
Part No.: 531X191RTBAJG1
Manufacturer: General Electric
Product Type: Relay Terminal Card
Series: EX2000

531X191RTBAJG1 is a Relay Terminal Card developed under EX2000 excitation system. One of the seven onboard relays can be used to connect to and control external circuitry. Using the terminal board on the card, the device also enables users to access the coils and contacts.

-Several board functions are made available to the drive when this card is attached. A 115 VAC coil with a 50/60 Hz frequency is located inside the board. The board's contacts have a rating of 0.7 A DC or 105 VDC, and the resultant hold currents are 9 mA. The RTB points and relay contacts for the board can also be tabulated using 531X191RTBAJG1. An embedded LED indicator light is a feature of each relay.

-When the relays are powered on, these will light. The board's external circuitry can also be controlled by the card. The device's instruction booklet comes with installation instructions for the board. By adhering to these guidelines, you can reduce the chance that the board will get damaged.

-The relay terminal board should only be handled and installed by trained personnel. The relevant device handbook and datasheet contain wiring instructions for the board.
