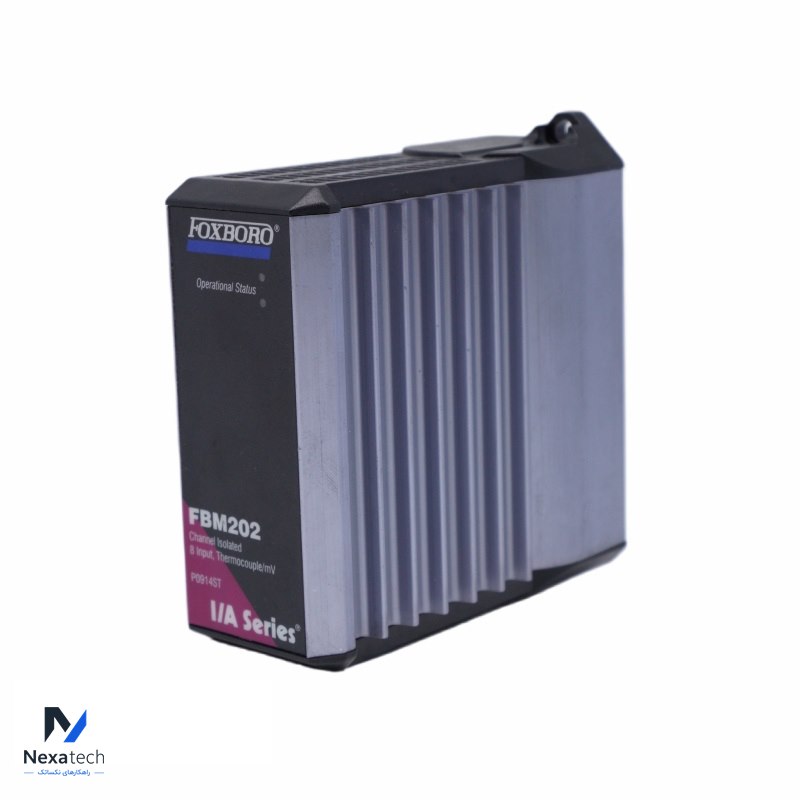

FOXBORO FBM202 P0914ST Channel Isolated 8 Input Thermocouple/mV

The Foxboro FBM202 P0914ST is an input module designed for use in process control systems, specifically for handling thermocouple and millivolt (mV) inputs. Here’s a detailed overview:

Key Features:
Channel Isolated: Each input channel is electrically isolated to prevent interference and ground loops, enhancing signal accuracy and system reliability.
8 Inputs: Provides eight channels for connecting thermocouples or millivolt sources, allowing for multiple measurements to be processed simultaneously.
Thermocouple and mV Inputs: Compatible with various thermocouple types and millivolt signals, making it versatile for different temperature measurement applications.

Technical Specifications:
Input Types: Supports a range of thermocouples (e.g., Type J, K, T, etc.) and millivolt inputs.
Isolation: Each input channel is isolated to prevent electrical noise and ensure accurate measurements.
Signal Conversion: Converts thermocouple or millivolt signals into a format suitable for processing by the control system.
Accuracy: Designed to provide accurate measurements with minimal drift and interference.

Applications:
Temperature Measurement: Used in industrial process control systems for measuring temperature using thermocouples.
Signal Monitoring: Suitable for applications requiring the monitoring of millivolt signals for process control and data acquisition.
For detailed specifications, wiring diagrams, and installation procedures, refer to the datasheet or installation manual for the Foxboro FBM202 P0914ST module provided by Foxboro.
