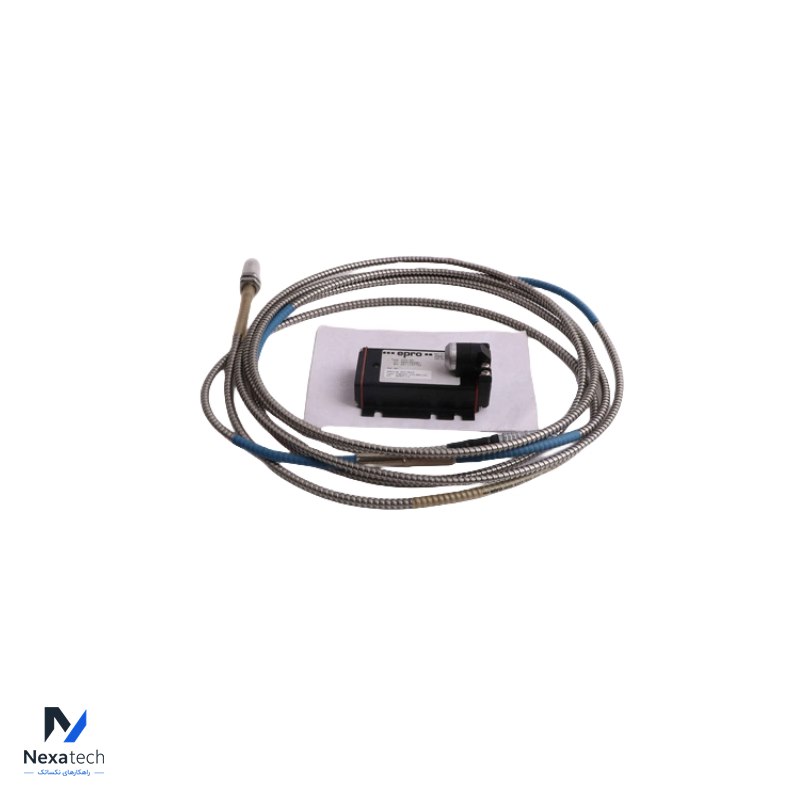

EPRO PR6426/000-131 CON041/916-200 Eddy Current Signal Converter
توضیحات محصول
مشخصات فنی
| Brand Name: | EPRO | ||
| Model Number: | PR6426/000-131 | ||
| Alternate Part Number | CON041/916-200 | ||
| Condition: | 100% Original | ||
| Dimensions | 4.1cm*15.9cm*10.8cm | Weight | 0.3kg |
| Description | Eddy Current Signal Converter | Warranty: | 12 Months |
| | | | |
The EPRO PR6426/000-131 CON041/916-200 is an Eddy Current Signal Converter designed for use in industrial settings to convert the signals from eddy current sensors into a format suitable for further processing and analysis.
Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.
Here's a table summarizing the provided information:
| Category | Specification |
| Dynamic Performance | |
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Note | Designed for PR6422, PR6423, PR6424, PR6425, PR6426 |
| Note | For Extended Range Use: CON041/91x-xxx |
| Note | PR6425 Requires Extended Range Converter |
| Environmental | |
| Operating Temperature Range | -30 to 100°C (-22 to 212°F) |
| Shock and Vibration | 5g @ 60Hz @ 25°C (77°F) |
| Protection Class | IP20 |
| Power & Electrical | |
| Supply Voltage Range | -23V to -32V (Output Range -4V to -20V) |
| Supply Voltage Range | -21V to -32V (Output Range -2V to -18V) |
| Physical | |
| Housing Material / Weight | PA 6.6 / ~60 grams (2.12 oz) |
| Mounting | Din Rail |
| Connections | Screw Terminal (Max. 1.5 mm², Wire-end Sleeves) |
| Accessories | BOX 030 Housing for Converter Mounting |
